![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd01_DISEGNO.jpg)
PLUGPVMSH1
Vista frontale
B = 197
C = 225
D = 125
H = 98
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd02_DISEGNO.jpg)
PLUGPVMSH1
Vista laterale A-A
A = 100
E = 82
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd03_DISEGNO.jpg)
PLUGPVMSH1
Vista frontale
B = 197
C = 225
D = 125
H = 98
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd04_DISEGNO.jpg)
PLUGPVMSH1
Vista laterale B-B
A = 100
E = 82
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd05_DISEGNO.jpg)
PLUGPVMSH1
Vista superiore
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd06_DISEGNO.jpg)
PLUGPVMSH1
Vista superiore
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd07_DISEGNO.jpg)
PLUGPVMSH2
Vista frontale
B = 247
C = 275
D = 125
H = 98
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd08_DISEGNO.jpg)
PLUGPVMSH2
Vista laterale A-A
A = 100
E = 82
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd09_DISEGNO.jpg)
PLUGPVMSH2
Vista frontale
B = 247
C = 275
D = 125
H = 98
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd10_DISEGNO.jpg)
PLUGPVMSH2
Vista laterale B-B
A = 100
E = 82
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd11_DISEGNO.jpg)
PLUGPVMSH2
Vista superiore
G = 120
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd12_DISEGNO.jpg)
PLUGPVMSH2
Vista superiore
G = 120
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd13_DISEGNO.jpg)

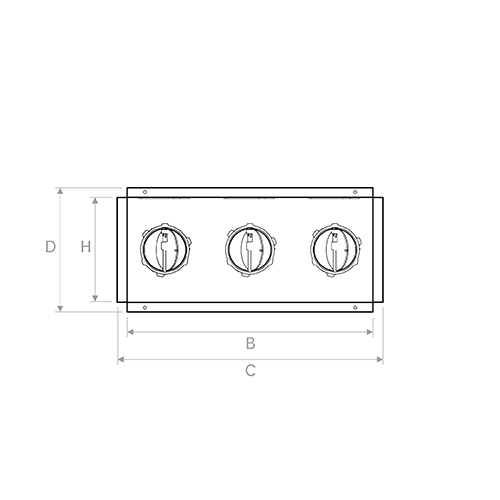

PLUGPVMSH3
Vista frontale
B = 347
C = 375
D = 175
H = 148
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd14_DISEGNO.jpg)
PLUGPVMSH3
Vista laterale A-A
A = 100
E = 82
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd15_DISEGNO.jpg)
PLUGPVMSH3
Vista frontale
B = 347
C = 375
D = 175
H = 148
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd16_DISEGNO.jpg)
PLUGPVMSH3
Vista laterale B-B
A = 100
E = 82
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd17_DISEGNO.jpg)
PLUGPVMSH3
Vista superiore
G = 120
![](https://www.broferpura.it/images/contenuti/19PLUGPVMSHd18_DISEGNO.jpg)
PLUGPVMSH3
Vista superiore
G = 120
