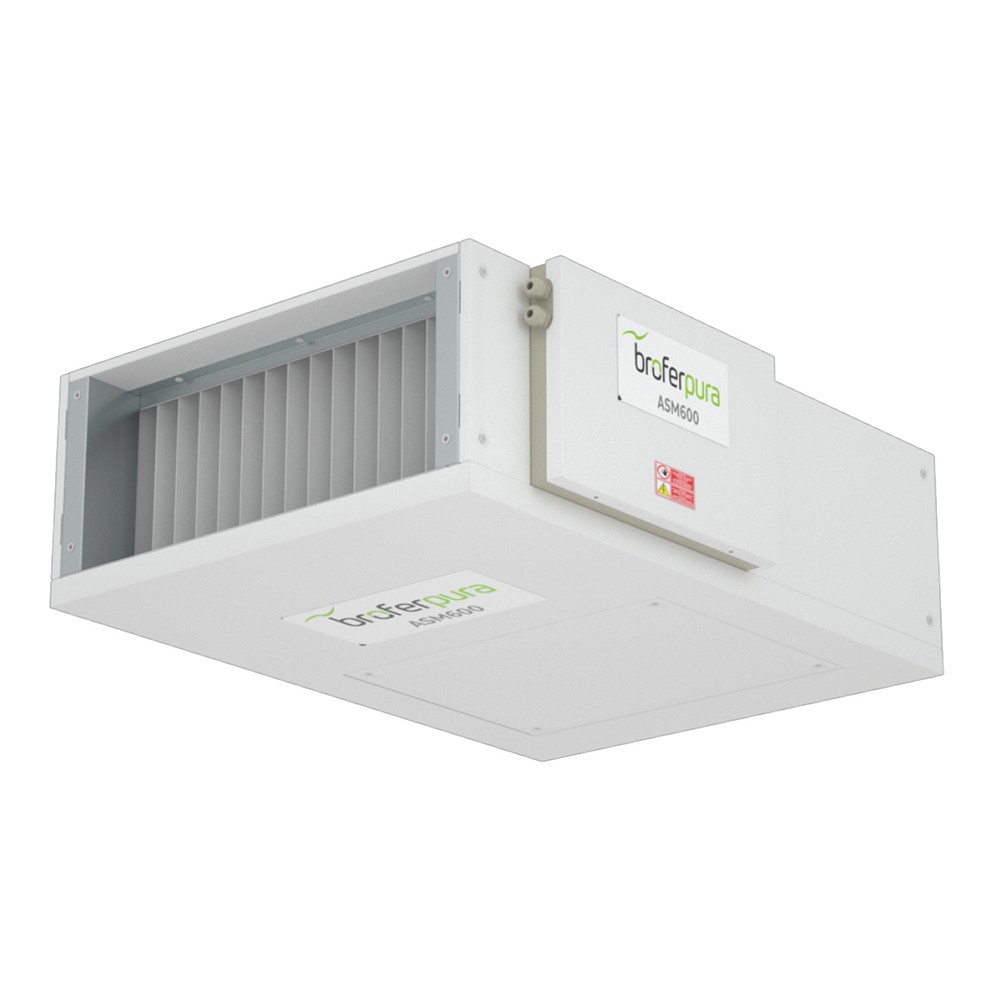

Broferpura

Dati tecnici


	ASM600	ASM1200	ASM2100	ASM3500	ASM5100
Portata aria massima (mc/h)	600	1200	2100	3500	5100
Area trattata (altezza 3m) (m2)	50-70	120-140	180-240	290-390	430-560
Efficienza UNI 11254	ePM2,5 90/95%
Efficienza filtrante batterica	> 90%
Potenza elettrica installata (w)	110	310	430	850	1100

Dimensioni

ASM 600/1200

Vista dal basso

ASM600+PSRAS+PRC
A = 590
C = 850
N = 42

ASM1200+PSRAS+PRC
A = 590
C = 850
N = 42

ASM 600/1200

Vista posteriore

ASM 600/1200

Vista laterale

ASM600+PSRAS+PRC
B = 270

ASM1200+PSRAS+PRC
B = 400

ASM 600/1200

Vista frontale

ASM600+PSRAS+PRC
D = 234
E = 562
G = 532
H = 169

ASM1200+PSRAS+PRC
D = 364
E = 562
G = 532
H = 299

ASM 600/1200

Vista dall’alto

ASM 600/1200

PSRAS 600 / 1200
ASM600+PSRAS+PRC
ASM1200+PSRAS+PRC
I = 310

ASM 600/1200

PSRAS 600 / 1200

ASM600+PSRAS+PRC
A = 590
B = 270

ASM1200+PSRAS+PRC
A = 590
B = 400

ASM 600/1200

PRC 600 / 1200

ASM600+PSRAS+PRC
D = 234
F = 198
L = 498

ASM1200+PSRAS+PRC
D = 364
F = 248
L = 498

ASM 600/1200

PRC 600 / 1200

M = 42

ASM 2100 / 3500 / 5100

Vista posteriore

ASM 2100 / 3500 / 5100

Vista laterale

ASM2100+PRC
C = 1500

ASM3500+PRC
C = 1500

ASM5100+PRC
C = 1700

ASM 2100 / 3500 / 5100

Vista frontale

ASM2100+PRC
B = 590
E = 30

ASM3500+PRC
B = 690
E = 30

ASM5100+PRC
B = 690
E = 30

ASM 2100 / 3500 / 5100

Vista superiore

ASM2100+PRC
A = 560
F = 85
X = 600

ASM3500+PRC
A = 650
F = 85
X = 600

ASM5100+PRC
A = 940
F = 85
X = 600

ASM 2100 / 3500 / 5100

PRC 2100 / 3500 / 5100

ASM2100+PRC
D = 400
H = 510
I = 530

ASM3500+PRC
D = 500
H = 600
I = 630

ASM5100+PRC
D = 600
H = 890
I = 630
