Bottom view
F=300
Front view
C=865
D=1465
Lateral view
A=285
E=80
H=1400
Top view
B=800
G=279
I=126
ØL=160
Products
Domestic
EH
PLUS:

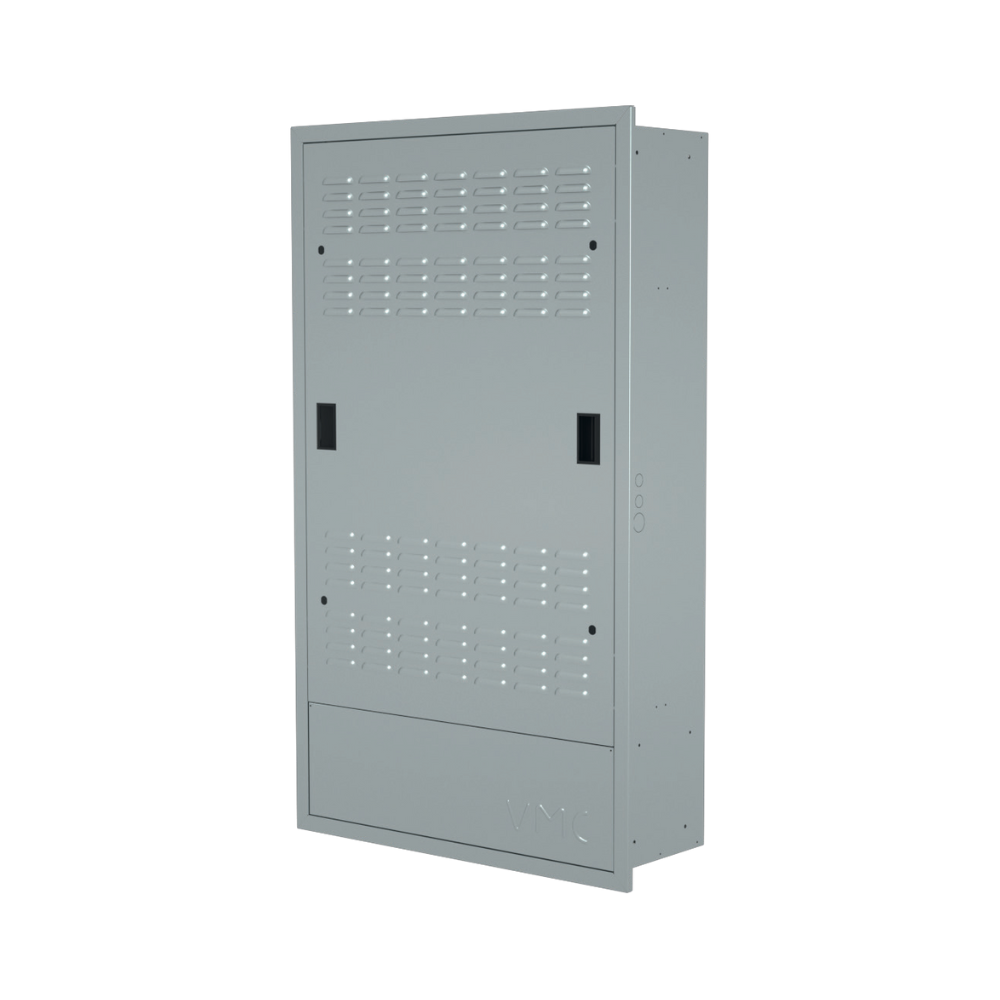

External housing module to be embedded in the wall made of galvanized steel with internal thermal insulation.
DESCRIPTION:
• It does not require the installation of a condensate drainage system.
• Installation of the air exhaust point in both the upper and lower part.
• Positioning of the distribution plenum (supply and return) both in upper and lower part.
• Positioning of the distribution plenum (supply and return) both axial and perpendicular to the housing wall.
• Opening of the door to the left, to the right or recessed modifiable during installation.
Dimension
Bottom view
F=300
Front view
C=865
D=1465
Lateral view
A=285
E=80
H=1400
Top view
B=800
G=279
I=126
ØL=160
Download documents
EHInformation request
Write us a message
