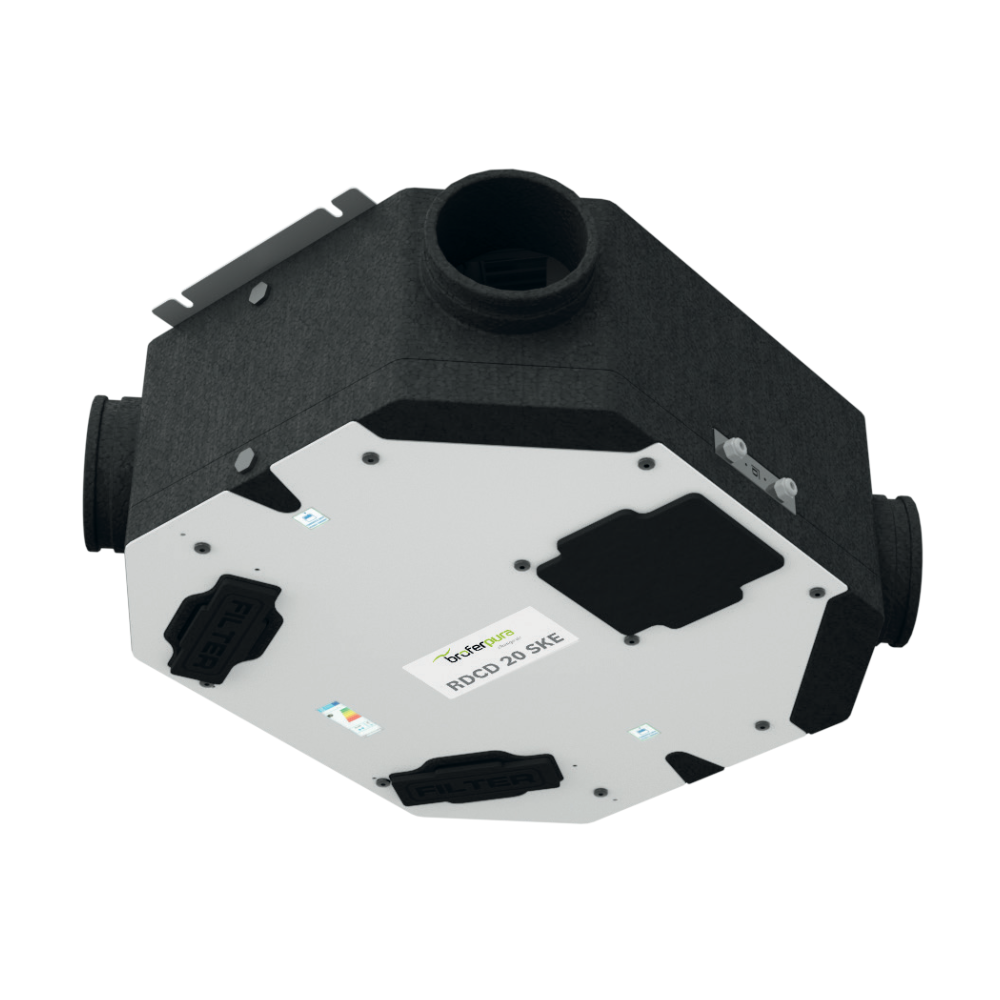

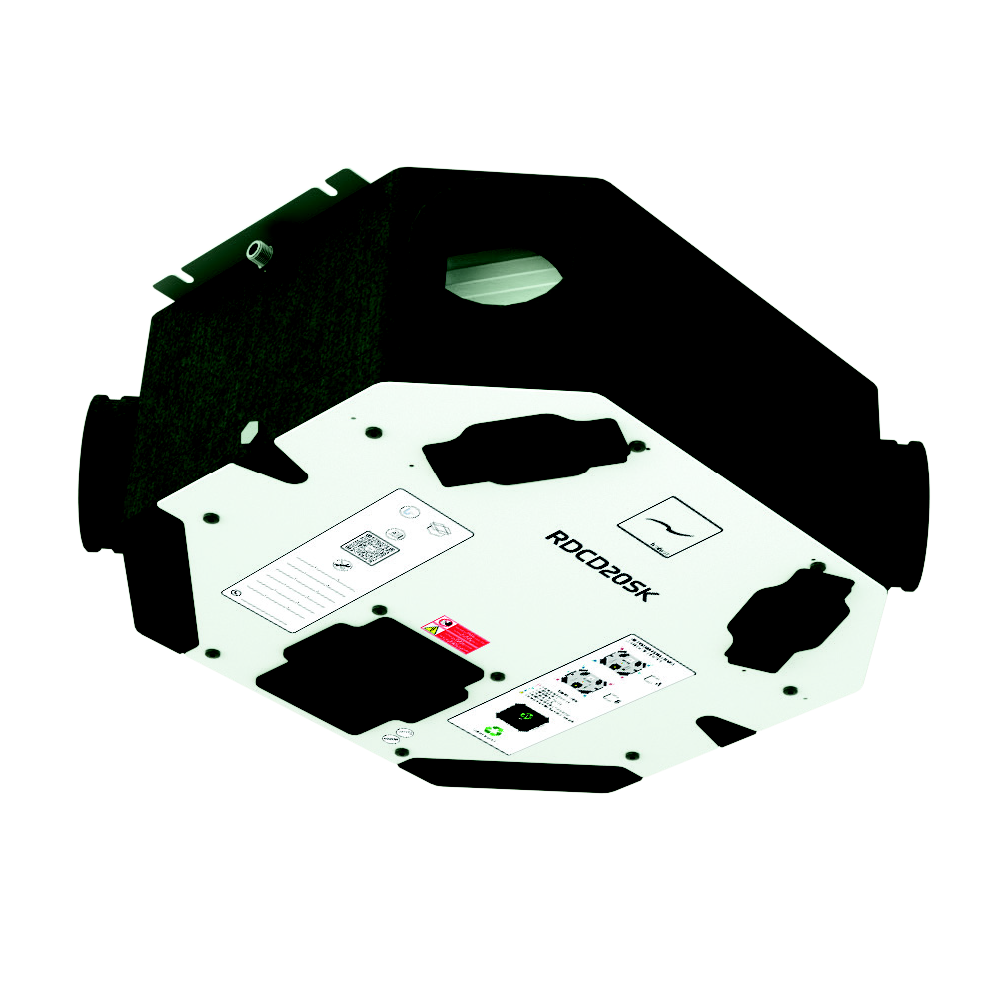

DOMESTIC CENTRALIZZED HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY ENTHALPIC HEAT EXCHANGER
WIRELESS PLUG AND PLAY CONTROL SYSTEM INCLUDED
AUTOMATIC BY-PASS INCLUDED
INSTALLATION HORIZONTAL-VERTICAL-RIGHT -LEFT
CONSTANT FLOW FANS
HUMIDITY CONTROL WITH INTERNAL UNIT PROBE
Heat exchanger of the type in countercurrent entirely made of plastic material.
Single inlet centrifugal fan forward blades with EC Brushless engine and costant air flow.
The units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.
|
PARAMETER DESCRIPTION |
VALUE / UNIT |
|
GENERAL DATA |
|
|
Nominal Air Flow |
140 m3/h |
|
Useful Static Pressure |
100 Pa |
|
DATA PER FAN |
|
|
Installed Nominal Power |
60 W |
|
Rounds |
1400 1/min |
|
Nominal Current (I) |
0.6 A |
|
Rated Voltage |
230 V |
|
Frequency |
50 Hz |
|
Speed |
3 (+1 booster) |
|
FILTERS |
|
|
Standard Filter Efficiency |
G4 ISO COARSE > 65 % |
|
Optional Filter Efficiency |
F7 ISO e PM1 > 65 % |
