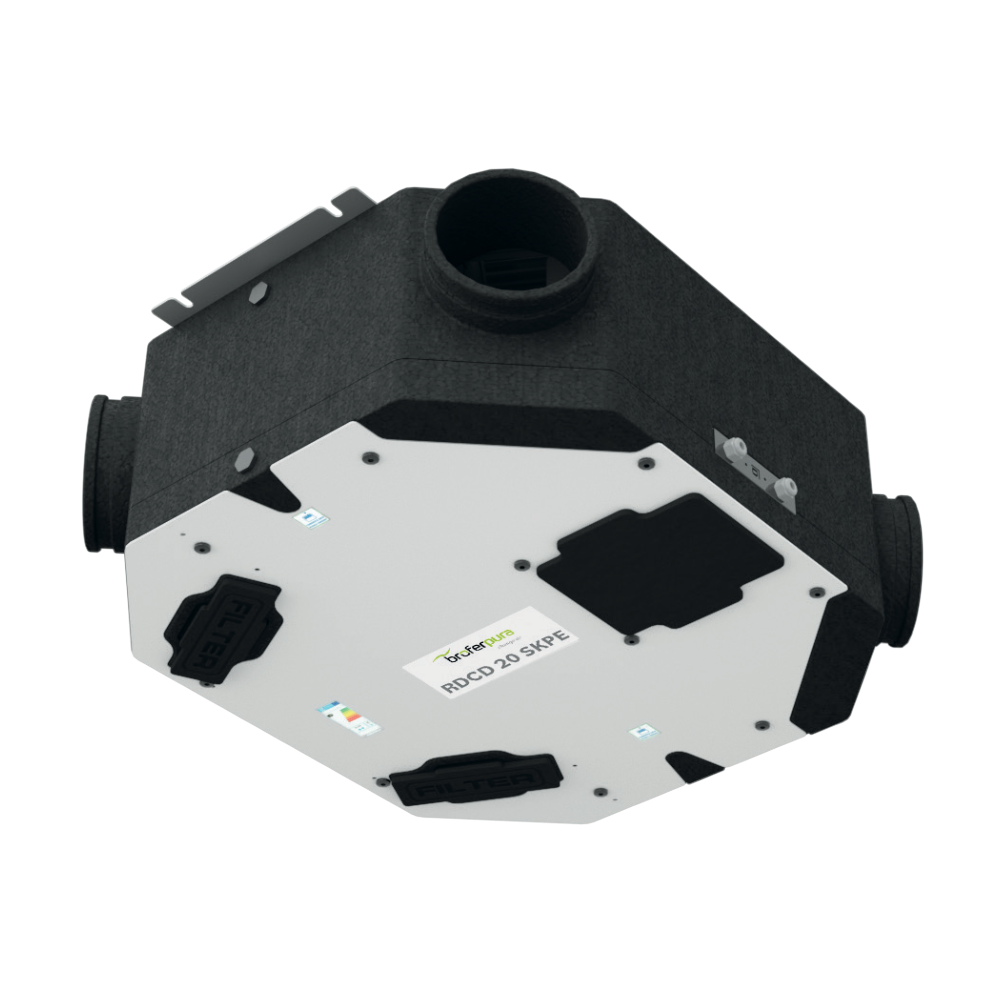

RDCD20SKPE

PLUS:

DOMESTIC CENTRALIZZED HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY ENTHALPIC HEAT EXCHANGER
WIRELESS PLUG AND PLAY CONTROL SYSTEM INCLUDED
AUTOMATIC BY-PASS INCLUDED
INSTALLATION HORIZONTAL-VERTICAL-RIGHT -LEFT
CONSTANT FLOW FANS
HUMIDITY CONTROL WITH INTERNAL UNIT PROBE

HEAT RECOVERY:

Heat exchanger of the type in countercurrent entirely made of plastic material.

STRUCTURE:

Free standing EPP seal, complete of filters ex traction system. Pre-painted sheet metal front panel.

FANS:

Single inlet centrifugal fan forward blades with EC Brushless engine and costant air flow.

FILTERS:

The units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.

Technical data


PARAMETER DESCRIPTION	VALUE / UNIT
GENERAL DATA
Nominal Air Flow	190 m³/h
Useful Static Pressure	100 Pa
DATA PER FAN
Installed Nominal Power	100 W
Rounds	1700 1/min
Nominal Current (I)	1 A
Rated Voltage	230 V
Frequency	50 Hz
Speed	3 (+1 booster)
FILTERS
Standard Filter Efficiency	G4 ISO COARSE > 65 %
Optional Filter Efficiency	F7 ISO e PM1 > 65 %


DESCRIZIONE PARAMETRO	VALORE / UNITÀ
DATI GENERALI
Portata aria nominale	190 m³/h
Pressione statica utile	100 Pa
DATI PER SINGOLO VENTILATORE
Potenza nominale installata	100 W
Giri	1700 1/min
Corrente nominale (I)	1 A
Tensione nominale	230 V
Frequenza	50 Hz
Velocità	3 (+1 booster)
FILTRI
Efficienza Filtro Standard	G4 ISO COARSE > 65 %
Efficienza Filtro Opzionale	F7 ISO e PM1 > 65 %
