RDCD25

PLUS:

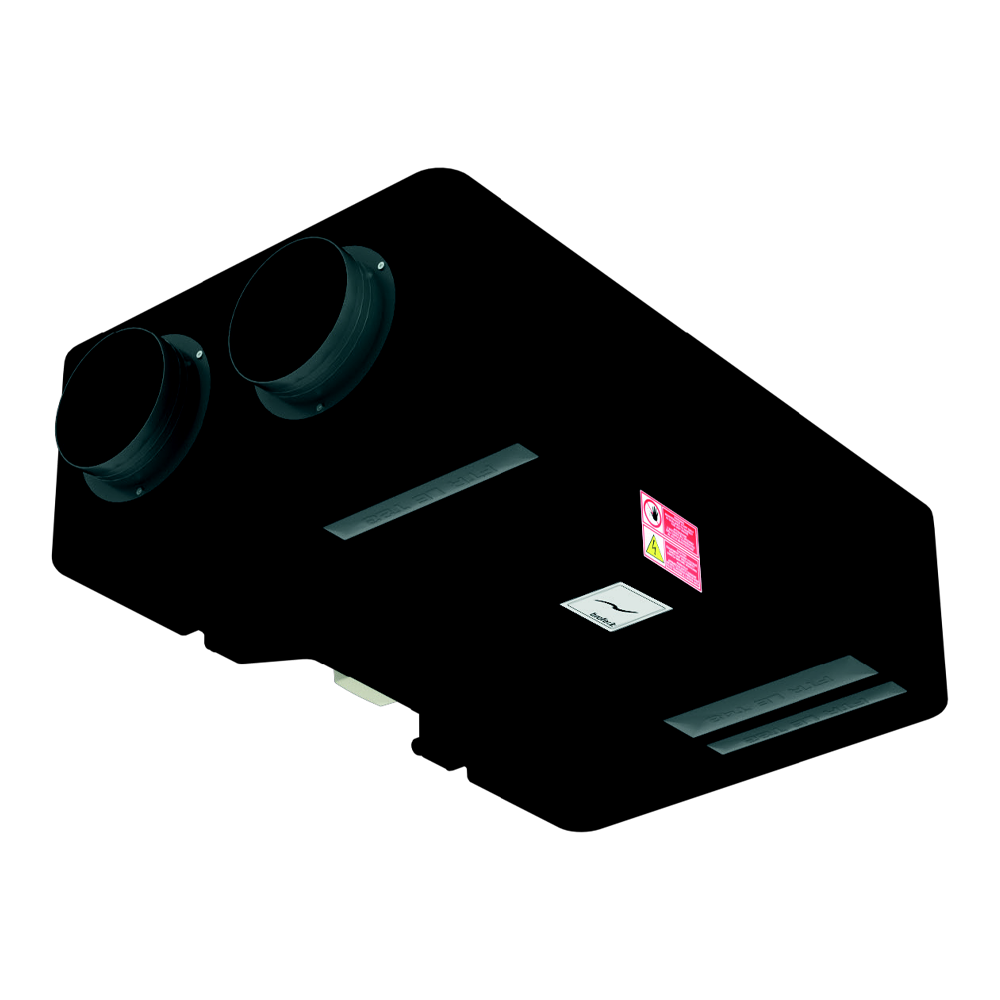

DOMESTIC CENTRALIZED HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY AND SPEED REGULATOR TO BE WIRED INCLUDED

HEAT RECOVERY:

heat exchanger of the type in countercurrent entirely made of plastic material.

STRUCTURE:

free standing HMPEPS seal, complete of filters ex traction system and drain condensate.

FANS:

plug fan with EC Brushless engine.

FILTERS:

the units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.

Technical data



Nominal air flow (mc/h)	160
Useful static pressure (pa)	100


DATA FOR EACH FAN
Installed power (W)	27
Round (1/MIN)	3700
Current (A)	0,27
Rated voltage (V)	230
Frequency (HZ)	50
Speed (nr)	1


FILTERS
Efficiency Standard	G4 ISO COARSE > 65 %
Efficiency Optional	F7 ISO e PM1 > 65 %

Dimension

Bottom View

D = 243
E = Ø156
H = 900
I = 1000

Internal view

Side view

A = 149
C = 255
F = 440

Front view

B = 550
K = 268

Plan view

Performance diagrams

PERFORMANCE EN 13141:7:2011 CERTIFIED

Useful static pressure
Data with standard G4 filters
Air pressure drop with F7 efficiency filter 80 pa at maximum air flow rate

PERFORMANCE EN 13141:7:2011 CERTIFIED

S.F.P.

Data for single fan

HEAT EXCHANGER EN 308 CERTIFIED

Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

HEAT EXCHANGER EN 308 CERTIFIED

Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.
