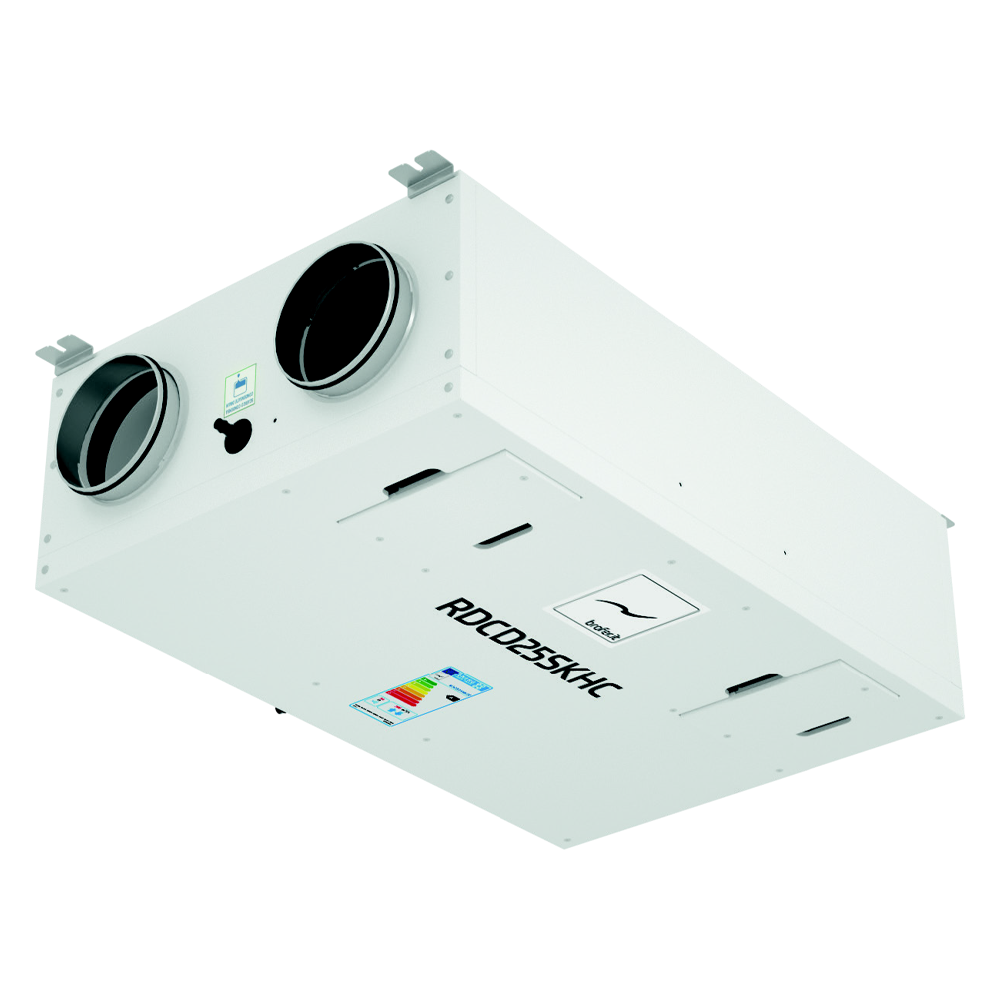

RDCD25SKHC

PLUS:

DOMESTIC CENTRALIZZED HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY AND WITH WIRELESS PLUG AND PLAY CONTROL SYSTEM INCLUDED AUTOMATIC BY-PASS INCLUDED INSTALLATION HORIZONTAL-VERTICAL-RIGHT -LEFT

HEAT RECOVERY:

heat exchanger of the type in countercurrent entirely made of plastic material.

STRUCTURE:

free standing EPP seal, complete of filters ex traction system and drain condensate. External casing made by prepainted steel with sound proof insulation.

FANS:

plug fan with EC Brushless engine single inlet.

FILTERS:

the units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.

Technical data



Nominal air flow (mc/h)	250
Useful static pressure (pa)	100


DATA FOR EACH FAN
Installed power (W)	50
Round (1/MIN)	4320
Current (A)	0,46
Rated voltage (V)	230
Frequency (HZ)	50
Speed (nr)	3+(1 booster)


FILTERS
Efficiency Standard	G4 ISO COARSE > 65 %
Efficiency Optional	F7 ISO e PM1 > 65 %



Caudal de aire (m³/h)	250
Presión estática útil (pa)	100


DATOS POR CADA VENTILADOR
DATOS POR CADA VENTILADOR (W)	50
Revoluciones (1/min)	4320
I nominal (A)	0,46
Tensión (V)	230
Frecuencia (Hz)	50
Velocidad (n.º)	3+(1 booster)


FILTROS
Eficiencia Standard	G4 ISO COARSE > 65 %
Eficiencia Optional	F7 ISO e PM1 > 65 %

Dimension

Bottom View

D = 320
E = Ø156
H = 914
I = 1005

Internal view

Side view

A = 135
C = 277

Front view

B = 595
K = 282

Plan view

F = 955
G = 520

Performance diagrams

PERFORMANCE EN 13141:7:2011 CERTIFIED

Useful static pressure
Data with standard G4 filters
Air pressure drop with F7 efficiency filter 80 pa at maximum air flow rate
