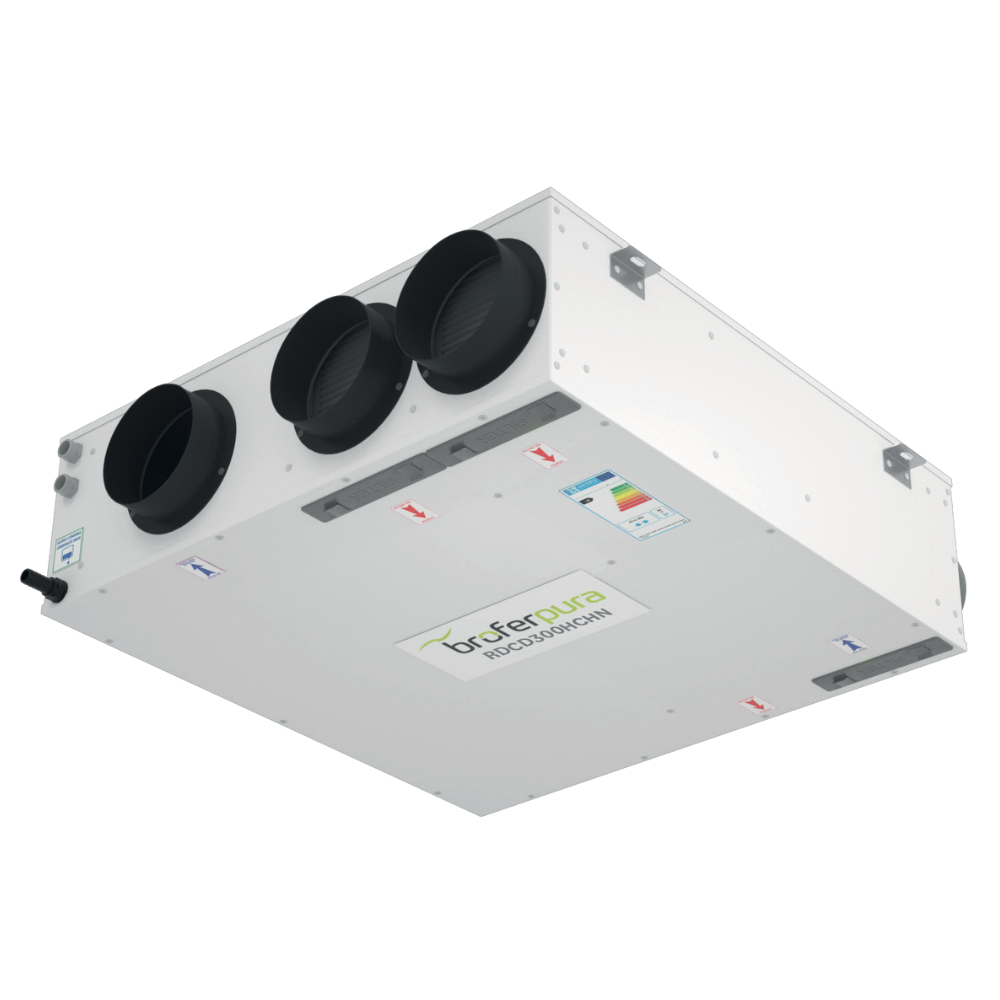

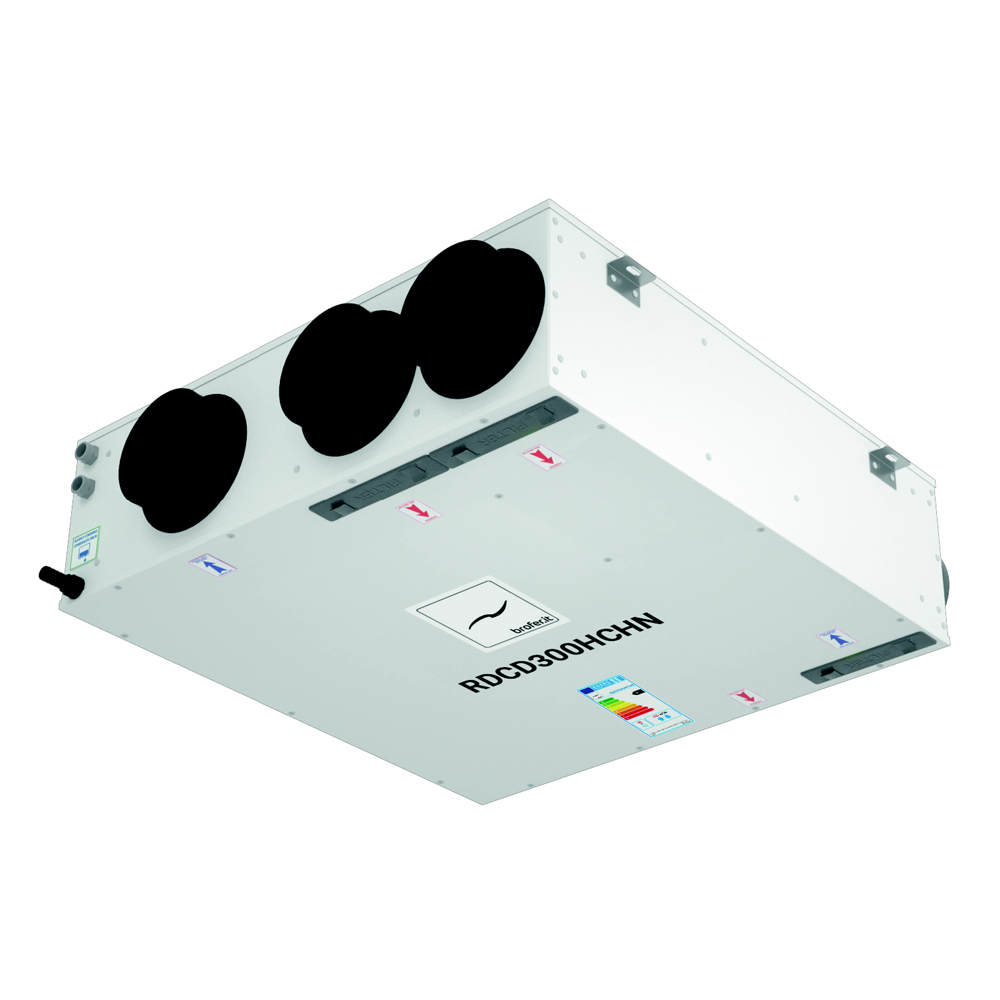

RDCD300HCHN

PLUS:

HIGH EFFICIENCY CENTRALIZED CONTROLLED MECHANICAL VENTILATION UNIT WITH INTEGRATED DEHUMIDIFICATION SYSTEM VENTILATION
FUNCTION WITH ENTHALPIC ENERGY RECOVERY DEUMIFICATION AND/OR INTEGRATION
FUNCTION FREE-COOLING / FREE-HEATING FUNCTION
FUNCTION CLIMATE CONTROL:
Control of supply air temperature during the dehumidification phase and contextual improvement of the cooling performance and associated noise level.

RECOVERY ENTHALPIC HEAT EXCHANGER:

Counter-current entirely made of plastic material.

STRUCTURE:

Self-supporting structure in pre-painted steel with thermal and acoustic insulation.

FANS:

Plug fan with EC Brushless motor.

FILTERS:

The units are equipped as standard with ISO COARSE efficiency filter cells.

PRE-COOLING / HEATING COIL:

(water-air) with finned copper tube and aluminium fins complete with 2-way valve.

EVAPORATING COILS:

(gas-air) with finned copper tube and aluminium fins.

CONDENSING COIL:

(gas-air) with finned copper tube and aluminium fins.

BRAZED PLATE HEAT EXCHANGER:

(water-gas) complete with 2-way diverter modulating control valve dedicated to the control of maximum refrigeration efficiency and air delivery temperature.

COMPRESSOR:

Alternative hermetic (R454C).

RECIRCULATION DAMPER:

(complete with servomotor). Unit operating only with chilled water supply. Dedicated hydronic chilled water circuit is highly necessary.

Technical data


PARAMETER DESCRIPTION	VALUE / UNIT
AIR FLOWS Renewal mode (150 m³/h)
Nominal supply air flow rate	150 m³/h
Useful static pressure supply*	285 Pa
Nominal exhaust air flow rate	150 m³/h
Useful static pressure exhaust*	358 Pa
AIR FLOWS Air treatment + renewal mode (300 m³/h)
Nominal supply air flow rate	300 m³/h
Nominal recirculation air flow rate	150 m³/h
Useful static pressure supply*	210 Pa
Nominal air exhaust flow rate	150 m³/h
Useful static pressure exhaust*	358 Pa
AIR FLOWS Air treatment mode only (300 m³/h)
Nominal recirculation air flow rate	300 m³/h
Useful static pressure supply*	262 Pa
COOLING AND DEHUMIDIFICATION (1)
Cooling power**	2.65 kW
Water temperature	15 °C
Water flow rate	880 l/h
Pressure drop (including valve)	26 kPa
Condensation capacity	40.1 l/24h
HEATING (2)
Total power**	2.6 kW
Water flow rate	880 l/h
Pressure drop (including valve)	26 kPa
POWER CONSUMPTION (150 m³/h and 200 Pa)
Supply voltage (single-phase HZ)	230 V
Absorbed power	0.12 kW
Current	0.9 A
POWER CONSUMPTION OF UNIT (300 m³/h and 200 Pa) (Compressor on)
Supply voltage (single-phase HZ)	230 V
Absorbed power	0.34 kW
Current	3.16 A
