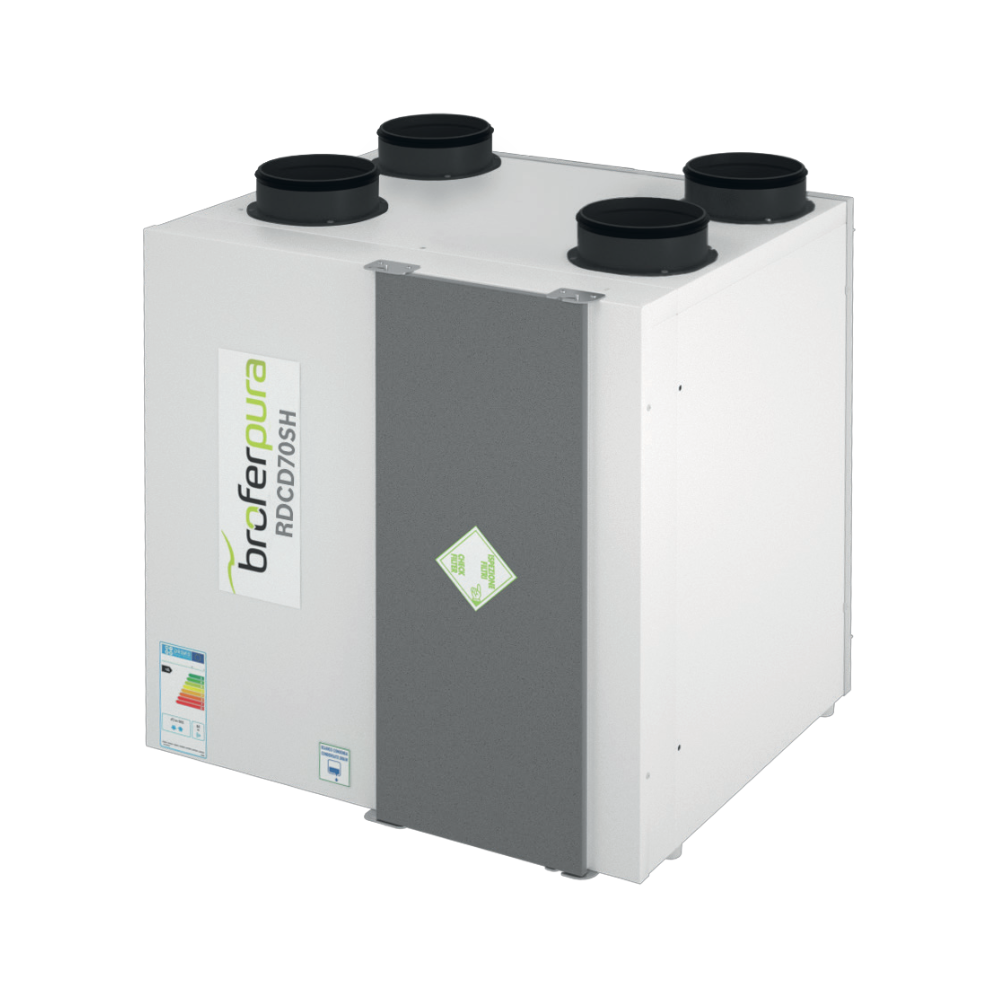

RDCD70SH

PLUS:

DOMESTIC CENTRALIZZED HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY AND WITH
WIRELESS PLUG AND PLAY CONTROL SYSTEM INCLUDED AUTOMATIC BY-PASS INCLUDED

HEAT RECOVERY:

heat exchanger of the type in countercurrent entirely made of plastic material.

STRUCTURE:

free standing EPS seal with outer coat painted steel complete of filters ex traction system and drain condensate.

FANS:

plug fan type with EC Brushless engine.

FILTERS:

the units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.

Technical data

Dimension

Front view

H = 722
I = 838
R = 24

1 = F7 filter efficiency
2 = Condensate drain

Side view

C = 617
E = Ø200

Performance diagrams

PERFORMANCE EN 13141:7:2011 CERTIFIED

Useful static pressure
Data with standard G4 filters
Air pressure drop with F7 efficiency filter 80 pa at maximum air flow rate with clean filter

PERFORMANCE EN 13141:7:2011 CERTIFIED

S.F.P.
Data for single fan

HEAT EXCHANGER EN 13147:7:2011 CERTIFIED

Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

HEAT EXCHANGER EN 13147:7:2011 CERTIFIED

Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.
