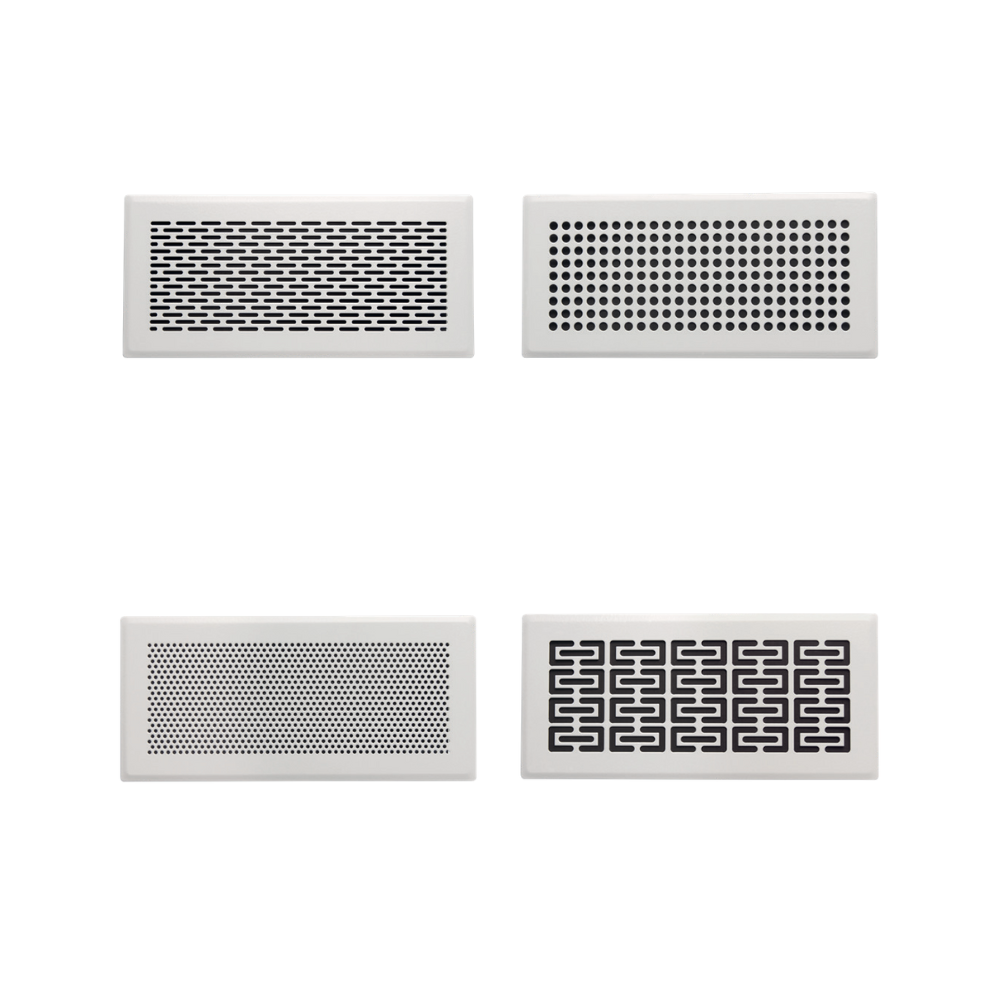

DESIGN VMC STEEL GRILLES

DESCRIPTION:

VMC grille made of steel with RAL 9003 polish paint (other RAL on request). With clips (kit clips supplied loose with each grille).

Technical data

	PLUTO	EARTH	MARS	SATURN
TECHNICAL DATA
Free area (m²)	0.008729	0.008313	0.007203	0.012371
Air flow minimum (m³/h)	15	15	10	25
Air flow maximum (m³/h)	60	60	50	90
Sound power (dB(A))	<20 / 23	<20 / 23	<20 / 23	<20 / 23
Throw (m)	0.3 / 0.85	0.3 / 0.85	0.3 / 0.85	0.3 / 0.85
Air pressure drop minimum (Pa)	2	2	2	2
Air pressure drop maximum (Pa)	12	12	12	12

Dimension

Front view

C=280
D=130

Lateral view

A=39
E=3
H=91

Top view
B=241

Download documents

griglievmcdesigninacciaio

GRIGLIEVMCDESIGNINACCIAIO
