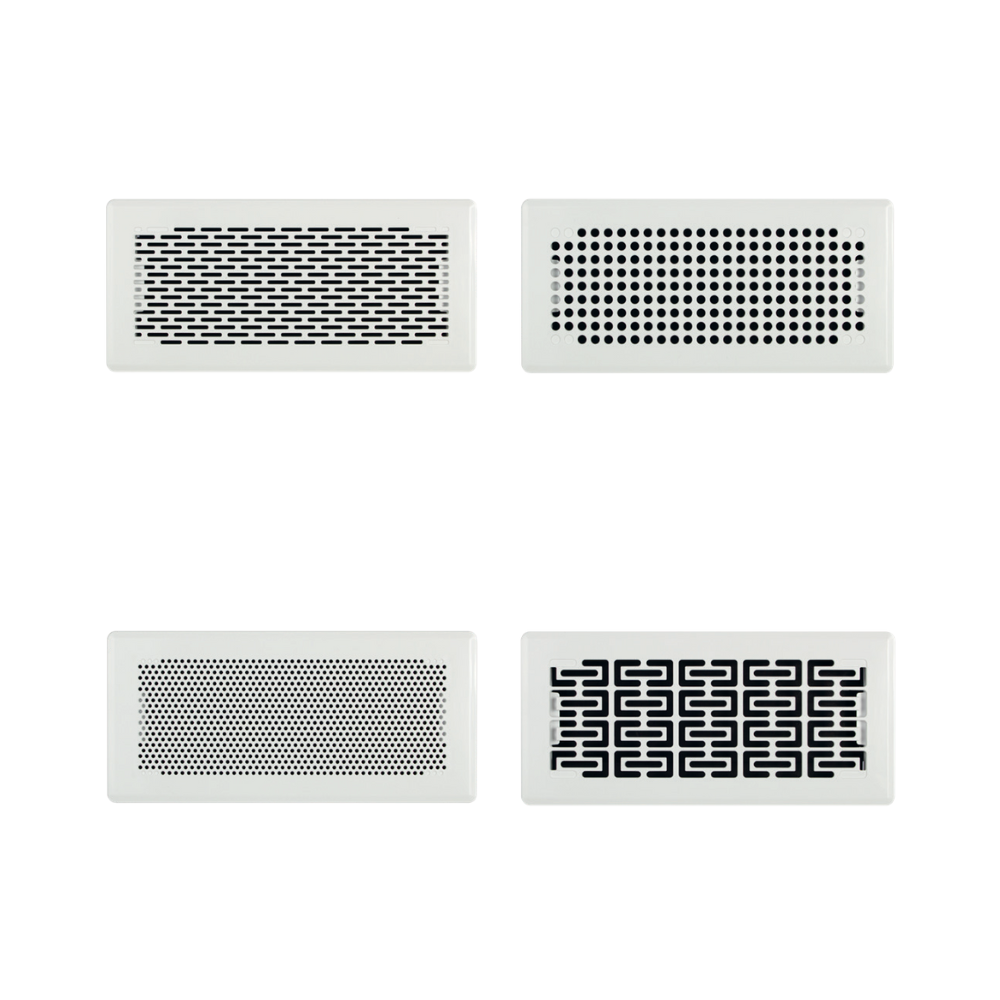

MOON COLLECTION DESIGN VMC GRILLES MADE IN ABS

DESCRIPTION:

VMC grille made ABS RAL 9003 polish paint with treatment against UV rays. With clips (kit clips supplied loose with each grille).

Technical data

	PLUTO	EARTH	MARS	SATURN
TECHNICAL DATA
Free area (m²)	0.008729	0.008313	0.007203	0.012371
Air flow minimum (m³/h)	15	15	10	25
Air flow maximum (m³/h)	60	60	50	90
Sound power (dB(A))	<20 / 23	<20 / 23	<20 / 23	<20 / 23
Throw (m)	0.3 / 0.85	0.3 / 0.85	0.3 / 0.85	0.3 / 0.85
Air pressure drop minimum (Pa)	2	2	2	2
Air pressure drop maximum (Pa)	12	12	12	12

Dimension

Front view

C=280
D=130

Lateral view

A=21
E=4
H=91

Top view

B=241

Download documents

griglievmcdesigninabsmooncollection

GRIGLIEVMCDESIGNINABSMOONCOLLECTION
