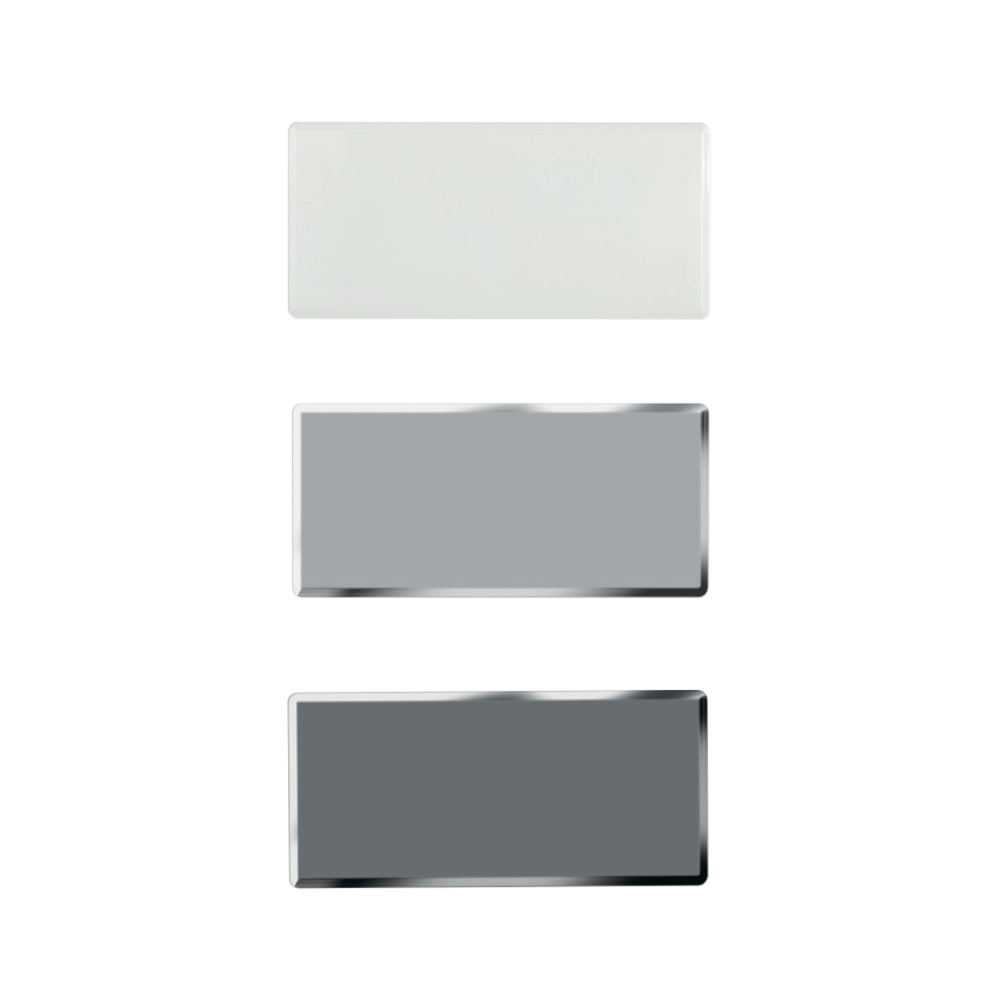

MOON GRILLES MADE IN ABS

DESCRIPTION:

Flat screen grilles for VMC made of glossy ABS RAL 9003 with treatment against UV rays. With integrated clips fixing.

Technical data


PARAMETER DESCRIPTION	VALUE / UNIT
TECHNICAL DATA (Model MOON)
Free area	0.004382 m²
Air flow minimum	15 m³/h
Air flow maximum	45 m³/h
Sound power	22 / 35 dB(A)
Throw	0.4 / 1 m
Air pressure drop minimum	10 Pa
Air pressure drop maximum	20 Pa

Dimension

Front view

C=280
D=130

Front view

A=21
E=4
H=91

Top view

B=241
I=9,5

Download documents

grigliemooninabs

GRIGLIEMOONINABS
