MVDVFLEX

DESCRIPTION:

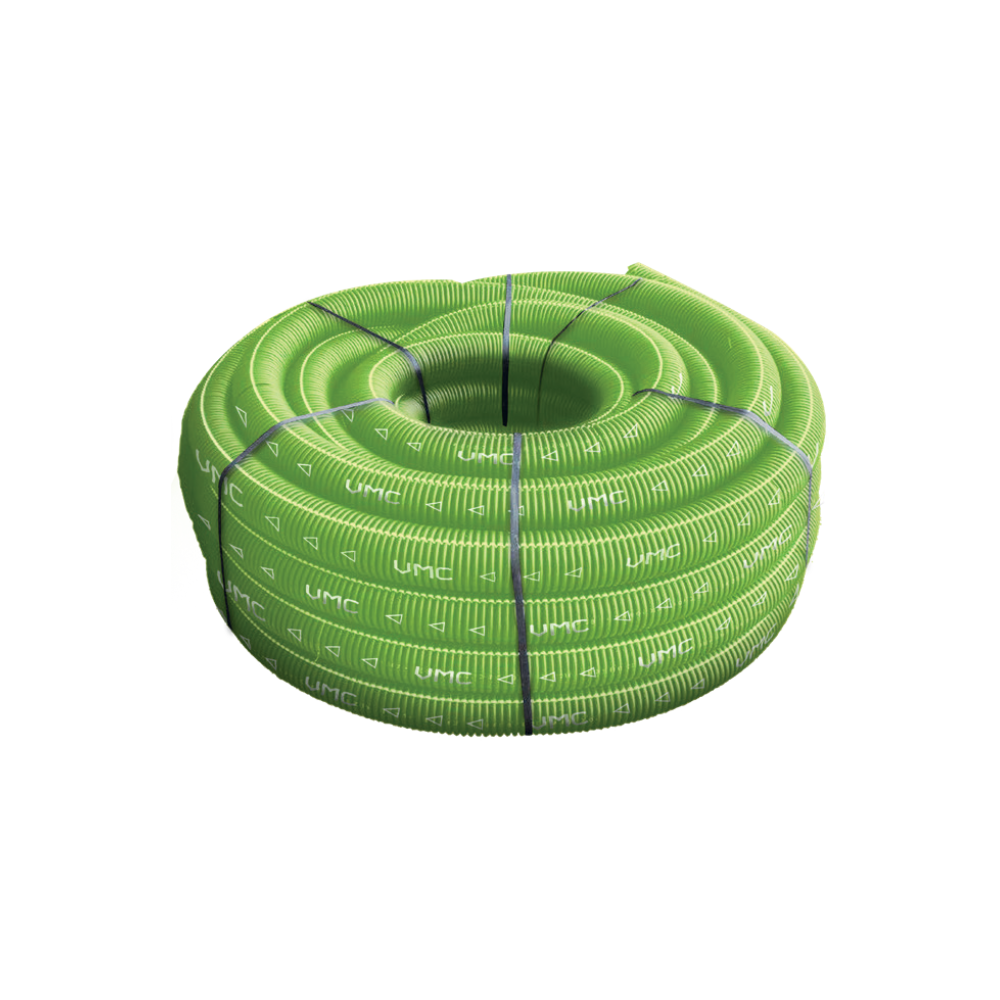

Anti-static and antibacterial high strength and high flexibility hose for VMC plants.

COMPLIANCE:

• Tested according to CEI EN 61386 to verify impact resistance.
• Tested according to the CEI EN 61386 standard to verify the crush resistance with a maximum deformation of 5%, higher than 500 N.
• Tested according to EN ISO 9969 to verify resistance to deflection with deformation greater than 30%, the hose does not show any damage to the internal and external walls.
• Tested according to the CEI EN 61386 standard to verify bendability, subjected to high and low temperature stress bending checks.

Technical data


PARAMETER DESCRIPTION	MVDVFLEX 63	MVDVFLEX 75	MVDVFLEX 90
DIMENSIONS
External Diameter (DE)	63 (+ 1.5) mm	75 (+ 1.5) mm	90 (+ 1.5) mm
Internal diameter (DI)	52 (±1) mm	63 (±1) mm	73 (±1) mm
CONSTRUCTION AND CHEMICAL CHARACTERISTICS
Electrical characteristics	Antistatic
Bacteriological characteristics	Sanitized antifungal antibacteria
Chemical characteristics	Halogen free
External wall material	PEAD
Internal wall material	MDPE
MECHANICAL AND OPERATIONAL PARAMETERS
Average radius of curvature	220 mm	270 mm	330 mm
Force to applied for 90° bending piece 500 mm	< 24.5 N
Ring rigidity EN 61386	≥ 500 N
Impact resistance EN 61386	20 J
Minimum operating temperature	- 20 °C
Maximum operating temperature	+ 60 °C
Fire reaction classification (UNI EN 13501)	Euroclass E
Internal ripple	< 5 %
