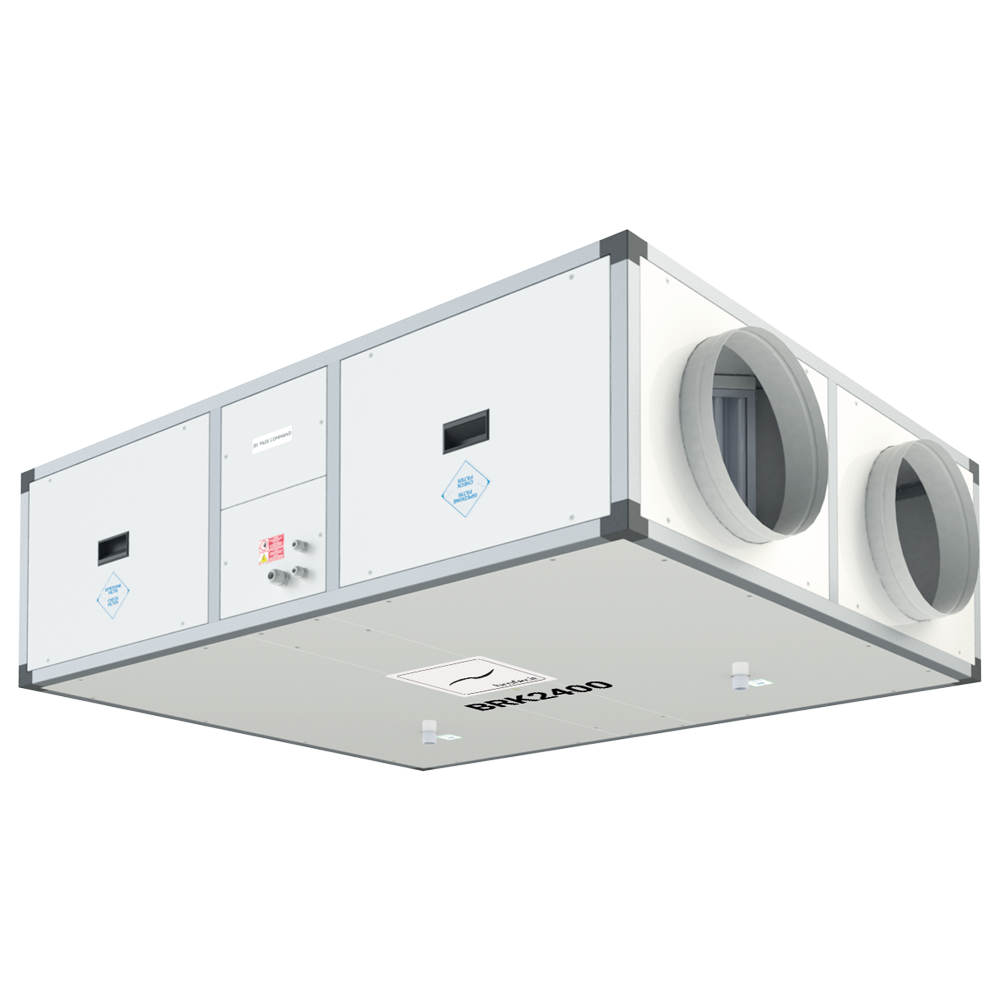

BRK2400

PLUS:

COMMERCIAL HEAT RECOVERY UNIT WITH VERY HIGH EFICIENCY
BY-PASS INCLUDED
EC MOTORS WITH FREQUENCY CONVERTER
HORIZONTAL INSTALLATION

HEAT RECOVERY:

The heat exchanger is the counterflow type all-aluminium. On the same is installed a condensate drain basin.

STRUCTURE:

The frame is made of aluminium and galvanized steel sandwich sound proof panels. The units are equipped with removable panels for access to the interior and make routine and extraordinary maintenance.

FANS:

Plug fan with EC Brushless engine (models BRK 1600, BRK 2400). Fan centrifugal double inlet for ward blades with EC Brushless engine constant air flow (model BRK 900).

FILTERS:

The units are equipped with standard filter cells wavy synthetic fiber efficiency G4, galvanized steel frame and safety nets in electro galvanized steel wire.

Technical data

	BRK900	BRK1600	BRK2400
GENERAL DATA
Nominal Air Flow	900 m³/h	1600 m³/h	2400 m³/h
Useful Static Pressure	100 Pa	170 Pa	90 Pa
FANS (Data per single fan)
Installed Nominal Power	240 W	480 W	500 W
Nominal Current (I)	1.8 A	3.6 A	3.8 A
Rated Voltage	230 V
Frequency	50 Hz
Speeds	1
FILTERS
Corrugated acrylic filter efficiency	G4 ISO COARSE > 65 %

	BRK900	BRK1600	BRK2400
EFFICIENCY AND PERFORMANCE DATA
Efficiency	73.2 %	74.5 %	74 %
Nominal Air Flow	800 m³/h	1300 m³/h	2000 m³/h
Useful Static Pressure	230 Pa	370 Pa	230 Pa
SFP Int	972 W/(m³/s)	1137 W/(m³/s)	936 W/(m³/s)
SFP-2018	1252 W/(m³/s)	1270 W/(m³/s)	1226 W/(m³/s)
Frontal Speed	1.66 m/s	1.63 m/s	2.08 m/s
Fan Efficiency	37 %	49 %	55 %
Internal Leakage	6.6 %	7.3 %	7.3 %
External Leakage	3.9 %	5.5 %	5.5 %
