Products

Sanitization

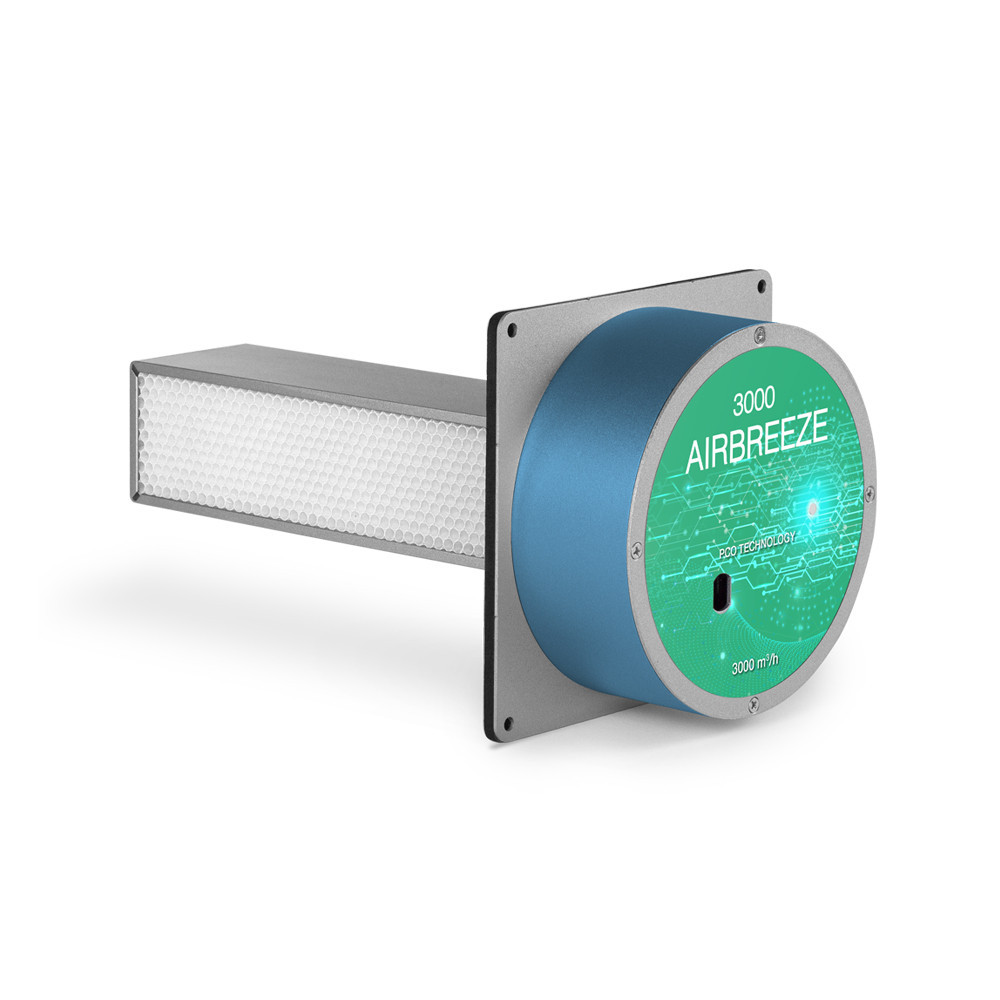

AIRBREEZE

PLUS:
PHOTOCATALYTIC SANITIZATION MODULE
CHARCTERISTICS:
AIRBREEZE modules use PCO technology. A special UV lamp is inserted in a metal-type honeycomb catalyst structure essentially consisting of TiO2 (titanium dioxide). The rays of the lamp catalyze the metal structure and once hit by the air flow they give rise to the photocatalytic reaction capable of sanitizing the air. Effective technology against viruses, bacteria, allergens, odors, organic and volatile compounds. The module is complete with a light pipe that shows the operating status.
ADDITIONAL:
INSTALLATION: AIRBREEZE modules can be installed on air ducts, inside air handling units and in distribution plenum boxes. This both within VMC and air conditioning systems.
modulo-fotocatalitico
ilac-mra
accredia
Technical data

Modello

Model

Modell

AIRBREEZE 1500

AIRBREEZE 3000

AIRBREEZE 4500

Alimentazione elettrica

Power supply

Stromversorgung

230 Volt - 50/60 Hz

Potenza nominale

Installed power

Nennleistung

13,3 w

13,3 w

19,2 w

Massima portata aria

Maximum air flow rate

Maximaler Luftdurchsatz

1500 mc/h

3000 mc/h

4500 mc/h

Peso

Weight

Gewicht

1,16 kg

1,25 kg

1,35 kg

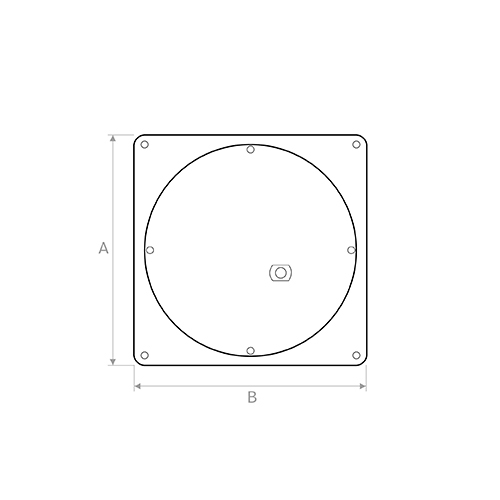

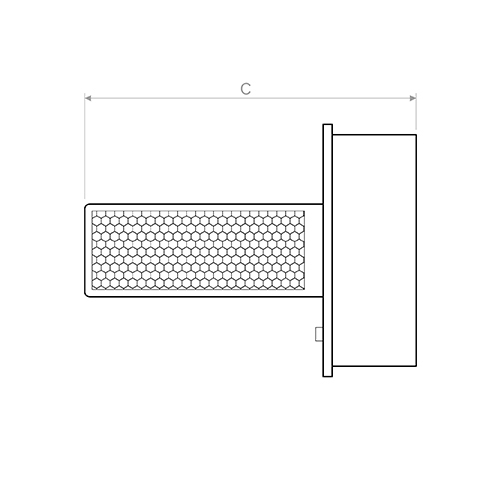

Dimension
Download documents
Information request

Write us a message
