Technical data


	ASU600	ASU1200	ASU2100	ASU3500	ASU5100
Maximum air flow rate (mc/h)	600	1200	2100	3500	5100
Area treated (height 3 meter) (m2)	50-70	120-140	180-240	290-390	430-560
Efficiency UNI 11254	ePM2,5 90/95%
Bacterial filtration efficiency	> 90%

Dimension

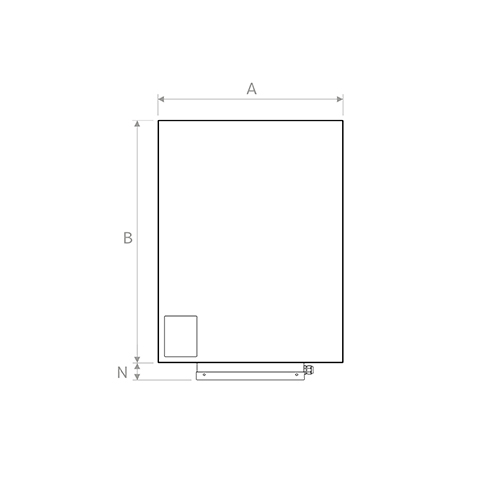

ASU 600 / 1200

Bottom View

A = 450
B = 590
N = 42

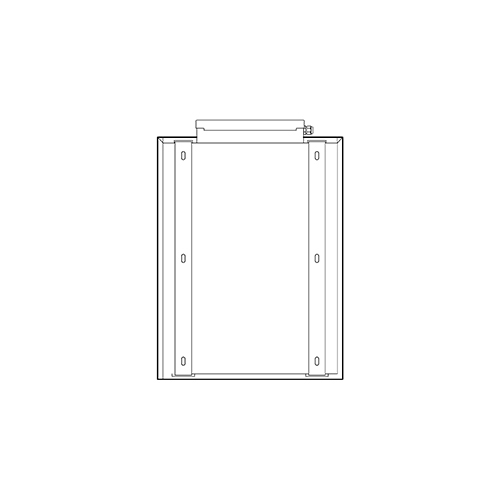

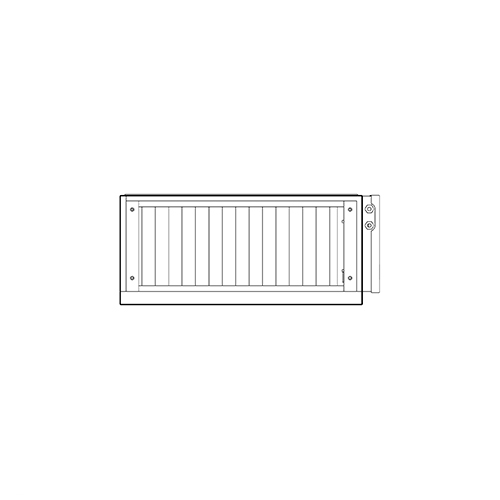

ASU 600 / 1200

Rear View

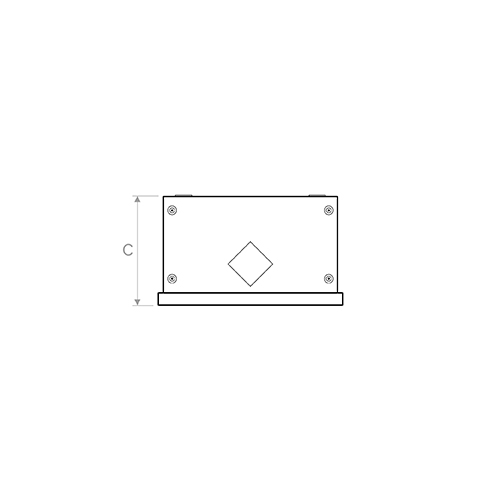

ASU 600 / 1200

Side view

ASU600+PRCC
C = 270

ASU1200+PRCC
C = 400

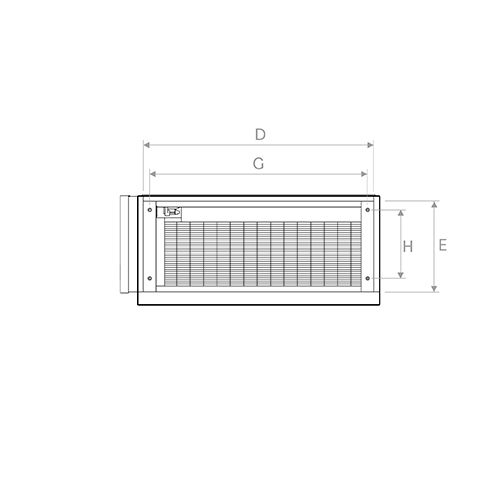

ASU 600 / 1200

Front view

ASU600+PRCC
D = 560
E = 222
G = 530
H = 167

ASU1200+PRCC
D = 560
E = 352
G = 530
H = 297

ASU 600 / 1200

Top view

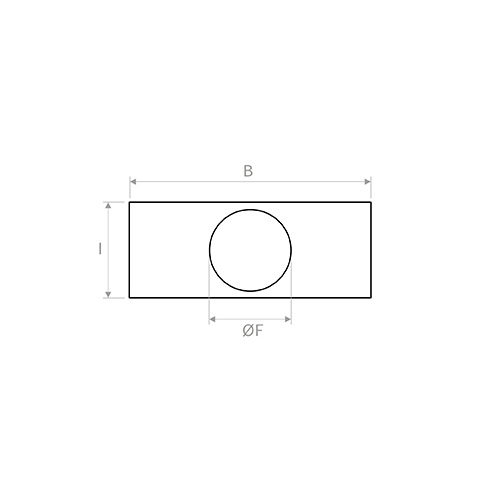

ASU 600 / 1200

PRCC 600 / 1200

ASU600+PRCC
B = 590
F = Ø200
I = 235

ASU1200+PRCC
B = 590
F = Ø313
I = 365

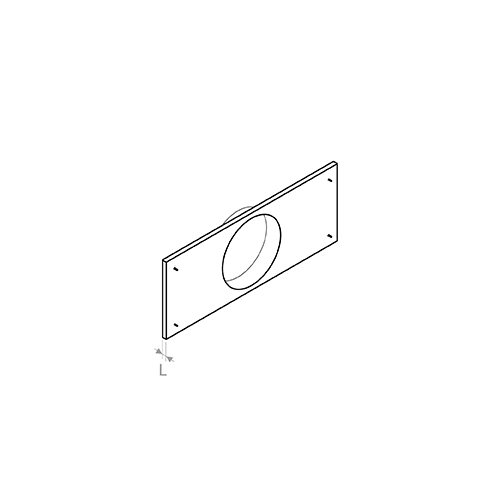

ASU 600 / 1200

PRCC 600 / 1200

L = 12,5

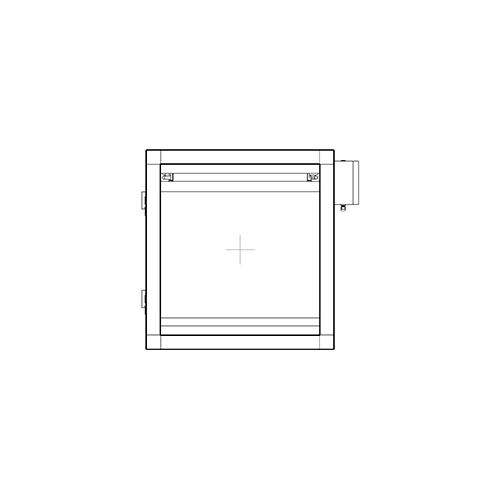

ASU 2100 / 3500 / 5100

Rear view

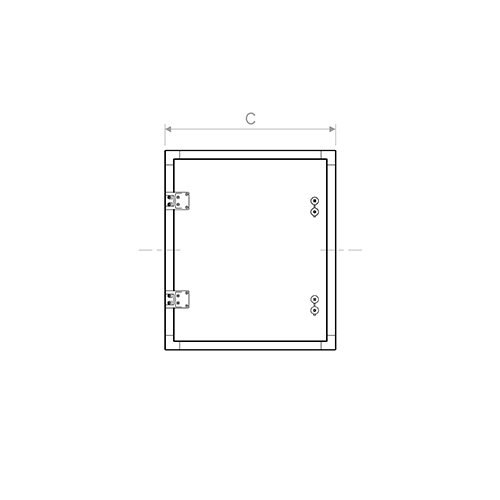

ASU 2100 / 3500 / 5100

Side view
C = 590

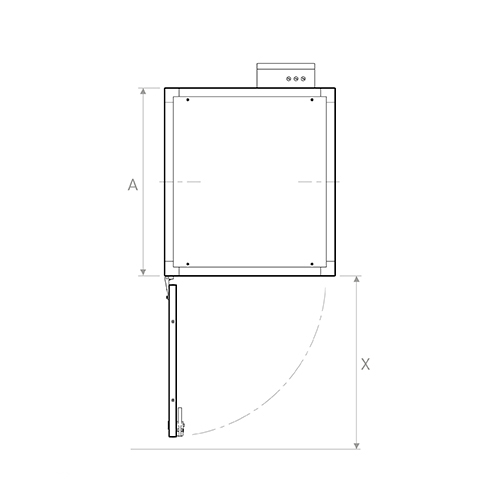

ASU 2100 / 3500 / 5100

Top view

ASU2100+PRC
A = 560
X = 600

ASU3500+PRC
A = 650
X = 600

ASU5100+PRC
A = 940
X = 600

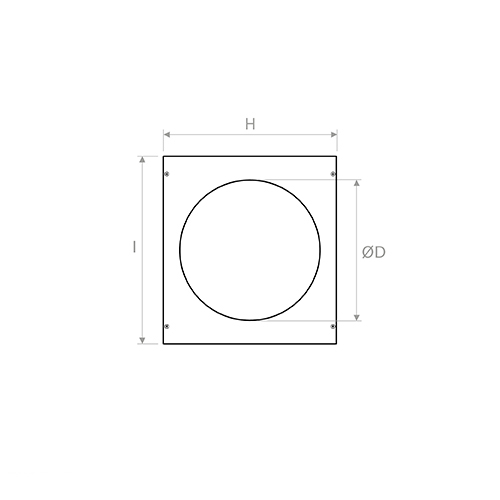

ASU 2100 / 3500 / 5100

PRC 2100 / 3500 / 5100

ASU2100+PRC
D = 400
H = 510
I = 530

ASU3500+PRC
D = 500
H = 600
I = 630

ASU5100+PRC
D = 600
H = 600
I = 630
