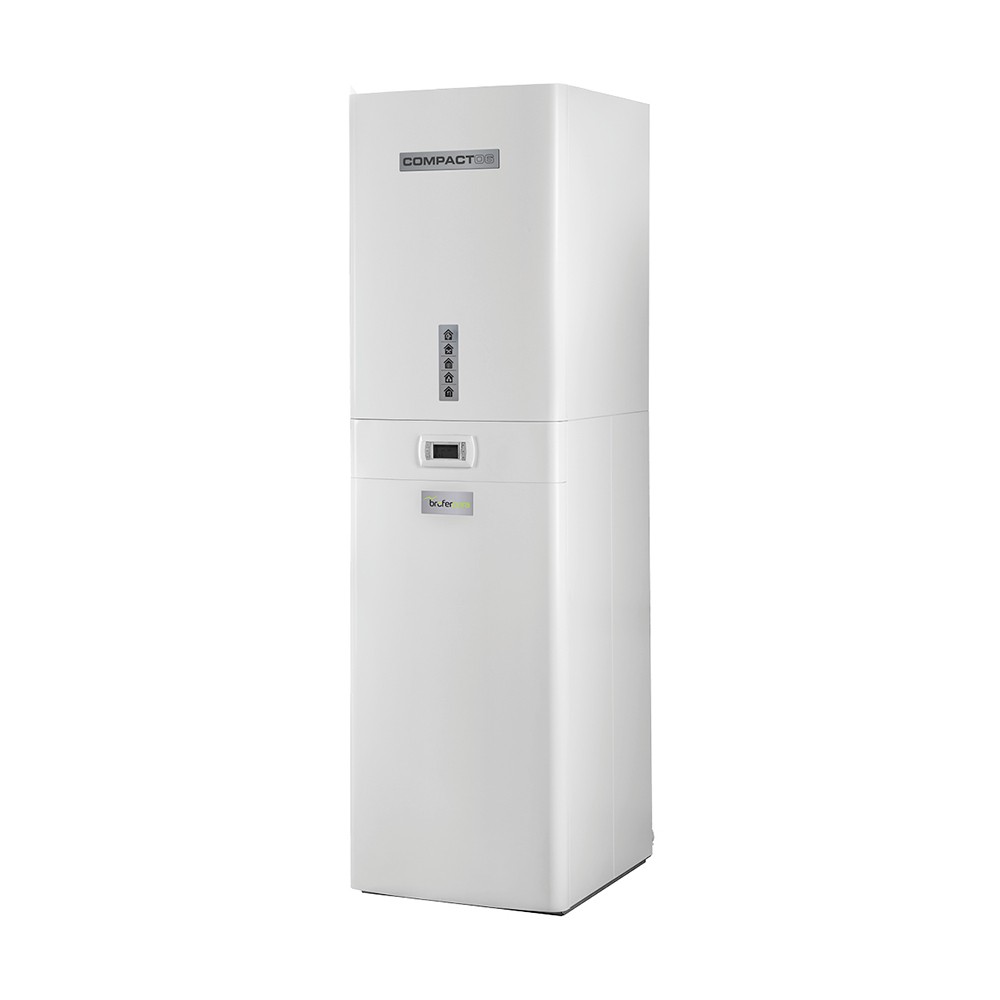

COMPACT06 (NORMAL MODE) |
||||
Heating capacity |
Total for transmission |
Nominal air flow rate at conditions:: fresh air 7°C DB (6,1°C WB), exhaust and recirculation air 20°C DB |
kW |
5,08 |
Total for transmission + Ventilation |
Nominal air flow rate at conditions:: fresh air 7°C DB (6,1°C WB), exhaust and recirculation air 20°C DB |
kW |
5,52 |
|
Total for transmission |
Nominal air flow rate at conditions:: fresh air – 5 °C DB (- 5,8 °C WB), exhaust and recirculation air 20°C DB |
kW |
4,5 |
|
Total for transmission + Ventilation |
Nominal air flow rate at conditions:: fresh air – 5 °C DB (- 5,8 °C WB), exhaust and recirculation air 20°C DB |
kW |
5,3 |
|
Cooling capacity |
Total for transmission |
Nominal air flow rate at conditions:: fresh air 35 °C DB (23,8 °C WB), exhaust and recirculation air 26°C DB (20,3 °C WB) |
kW |
4,81 |
Total for transmission + Ventilation |
Nominal air flow rate at conditions:: fresh air 35 °C DB (23,8 °C WB), exhaust and recirculation air 26°C DB (20,3 °C WB) |
kW |
5,15 |
|
Nominal supply air flow rate |
*Nominal air flow for consumption calculation |
m³/h |
600 |
|
Nominal fresh air flow rate (up to 200 m³/h) |
Fresh air |
m³/h |
100 |
|
Nominal recirculating air flow rate |
m³/h |
500 |
||
Maximum air suction flow rate from outside |
m³/h |
800 (100 fresh air) |
||
Maximum air exhaust flow rate to outside |
*Nominal air flow for consumption calculation |
m³/h |
800 (100 di exhaust air) |
|
Useful static pressure supply fan |
At nominal air flow rate of 600 m³/h |
Pa |
330 |
|
Useful static pressure exhaust fan |
At nominal air flow rate of 800 m³/h |
Pa |
260 |
|
Fans type |
- |
Constant air flow EC centrifugal fan |
||
Fresh air filter efficiency |
- |
F7 ISO e PM1 > 65 % |
||
Other filter efficiency |
- |
G4 ISO COARSE > 65 % |
||
Compressor type |
R32 |
- |
BLDC Brushless Rotary Inverter |
|
DHW storage |
litri |
200 |
||
DHW storage temperature |
°C |
from 40 to 60 |
||
Post heating electric coil |
kW |
0,5 |
||
DHW storage electric battery |
kW |
2,0 |
||
Power supply |
V/f/Hz |
230/1/50 |
SCOP THERMODYNAMIC |
|||
Only transmissions |
Bivalent temperature = -5°C Project temperature = -5°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
2,6 |
Bivalent temperature = -5°C Project temperature = -5°C |
Without absorption of fans |
2,9 |
|
Bivalent temperature = -10°C Project temperature = -10°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
2,8 |
|
Bivalent temperature = -10°C Project temperature = -10°C |
Without absorption of fans |
3,2 |
|
Bivalent temperature = -15°C Project temperature = -15°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
3,0 |
|
Bivalent temperature = -15°C Project temperature = -15°C |
Without absorption of fans |
3,4 |
|
Transmissions + ventilation + domestic hot water |
Bivalent temperature = -5°C Project temperature = -5°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
3,2 |
Bivalent temperature = -5°C Project temperature = -5°C |
Without absorption of fans |
3,7 |
|
Bivalent temperature = -10°C Project temperature = -10°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
3,7 |
|
Bivalent temperature = -10°C Project temperature = -10°C |
Without absorption of fans |
4,2 |
|
Bivalent temperature = -15°C Project temperature = -15°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
3,9 |
|
Bivalent temperature = -15°C Project temperature = -15°C |
Without absorption of fans |
4,4 |
|
Note |
The SCOP relative to the project / bivalent temperature equal to -10 ° C equal to that of a casing that at the temperature is -5 ° C has a dissipation for only transmissions equal to 3.23 kW and a total requirement of 4.42 kW (transmissions + ventilation + domestic hot water) |
||
The SCOP relating to the project / bivalent temperature equal to -15 ° C is equal to that of a casing which at a temperature of -5 ° C has a dissipation for transmissions only of 2.47 kW and a total requirement of 3.625 kW (transmissions + ventilation + domestic hot water) |
SEER THERMODYNAMIC |
|||
Only transmissions |
Project temperature = 35°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
3,6 |
Without absorption of fans |
4,6 |
||
Transmissions + ventilation + domestic hot water |
Project temperature = 35°C |
With absorption of fans (useful static pressure at nominal flow rates * equal to 100 Pa) |
4,1 |
Without absorption of fans |
5,2 |
Working range unit -15 / +40 °C
