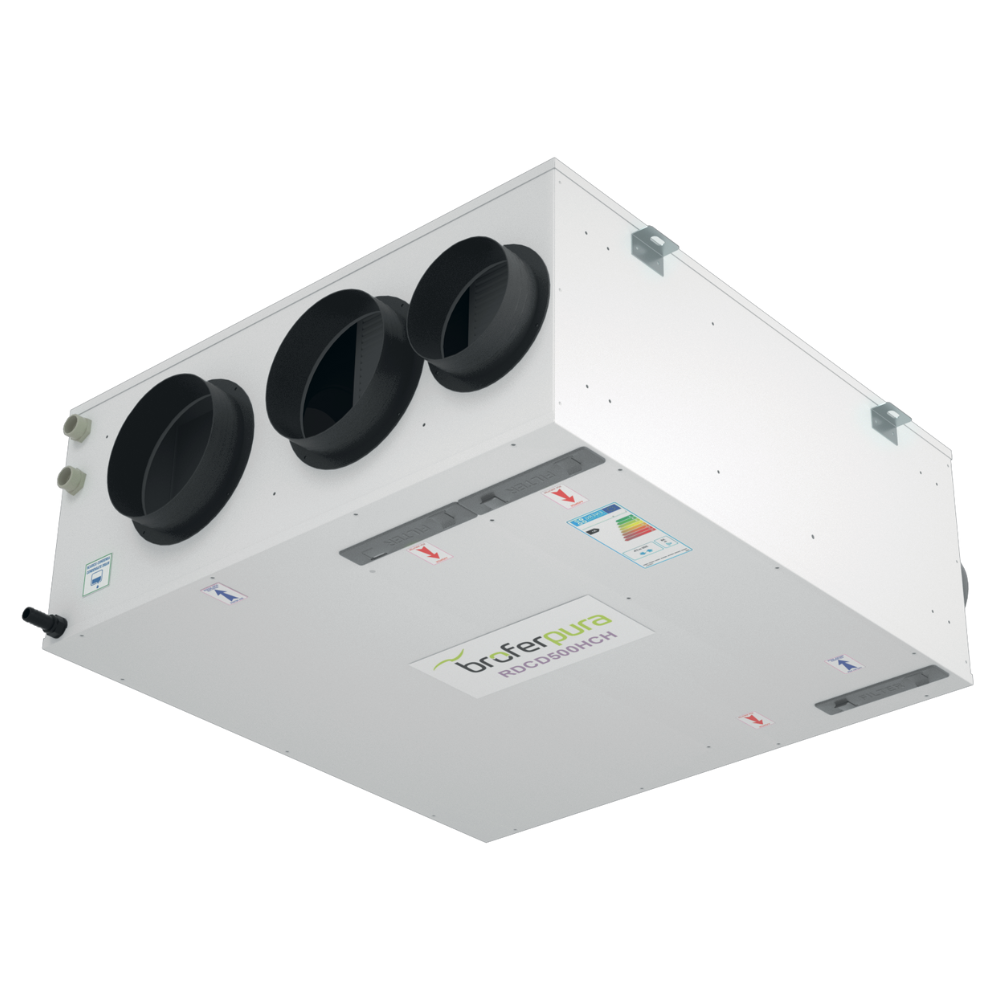

RDCD500HCH

PLUS:
HIGH EFFICIENCY CENTRALIZED CONTROLLED MECHANICAL VENTILATION UNIT WITH INTEGRATED DEHUMIDIFICATION SYSTEM VENTILATION FUNCTION WITH ENTHALPIC ENERGY RECOVERY DEUMIFICATION AND / OR INTEGRATION FUNCTION FREE-COOLING FUNCTION FUNCTION CLIMATE CONTROL: Control of supply air temperature during the dehumidification phase and contextual improvement of the cooling performance and associated noise level.
HEAT RECOVERY:
Enthalpic counter-current entirely made of plastic material.
STRUCTURE:
self-supporting structure in pre-painted steel with thermal and acoustic insulation.
FANS:
plug fan with EC Brushless motor.
FILTERS:
the units are equipped as standard with G4 efficiency filter cells.
CONTROLS:
HC CTR COLOR: control for unit setting. Operational functions from external system. HC CTR PLUS: unit setting control with humidity probe included. In the case of only control with HC CTR PLUS, the positive evaluation of the thermotechnical consultant is imperative. Unit operating only with chilled water supply. Dedicated hydronic chilled water circuit is highly recommended.
ADDITIONAL:
PRE-COOLING / HEATING COIL: (water-air) with finned copper tube and aluminum fins complete with 3-way valve. EVAPORATING COIL: (gas-air) with finned copper tube and aluminum fins. CONDENSING COIL: (gas-air) with finned copper tube and aluminum fins. BRAZED PLATE HEAT EXCHANGER: (water-gas) complete with 3 way diverter modulating control valve dedicated to the control of maximum refrigeration efficiency and air delivery temperature. COMPRESSOR: alternative hermetic (R134A). FREE-COOLING DAMPER: (complete with servomotor).
ce
erp2018
e-energy-saving
patent-pending
efficiency-90
ionizzatore
filtro-elettronico
deumidificazione
i-orizzontale
Technical data

Maximum fresh air airflow rate (renewal)

250 m³/h

Maximum airflow rate (room recirculation)

500 m³/h

Airflow regulation range

from 135 to 500 m³/h

Nominal condensing capacity

66,9 l/24h with 250 m³/h, 26°C and 60%R.H. room and 250 m³/h, 30°C and 60%R.H. fresh air,

at nominal water flow conditions (1330 l/h) and at the temperature of 15°C

Total refrigeration capacity

4,46 kW with 250 m³/h, 26°C and 60%R.H. room and 250 m³/h, 30°C and 60%R.H. fresh

air, at nominal water flow conditions (1330 l/h) and at the temperature of 15°C

Useful static pressure in dehumidification and/or integration + ventilation with maximum flow

(250 m³/h fresh air + 250 m³/h air recirculation = 500 m³/h supply air) (with G4 filters)

260 Pa

Useful static pressure in ventilation only with maximum flow (250 m³/h fresh air) (with G4 filters)

520 Pa

Useful static pressure for exhaust with maximum flow (250 m³/h fresh air) (with G4 filters)

550 Pa

Nominal water flow

1330 l/h

Summer operation

water at nominal temperature of 15°C

Water pressure drop (at nominal water flow)

25kPa

Sound pressure level (at 1m)

46 dB (A) (in ventilation only, at maximum flow rate of 175 m³/h and with a useful static pressure of 50 Pa).

G4 class removable filters ISO COARSE > 65 %

3

Condensate siphon drain (with working depth of at least 40 mm)

1

Cooling circuit complete with thermostatic expansion valve and dehydrator filter

Control board equipped with microprocessor electric control, interfaceable with ModBus RS485 protocol,

and control terminal block

Optional CO2 ambient probe (PI logic forcontinuous regulation of renewal air flow)

POWER SUPPLY

Voltage

230 V - 50 Hz

Maximum absorbed power

1,26 kW

Maximum absorbed current

8,5 A

POWER CONSUMPTION IN VENTILATION: supply: 250 m³/h - exhaust: 250 m³/h

Absorbed power, 50 Pa USP

118,4 W (51,2+51,2+16)

Absorbed current, 50 Pa USP

0,9 A (0,41+0,41+0,08)

Absorbed power, 100 Pa USP

136 W (60+60+16)

Absorbed current, 100 Pa USP

1,06 A (0,49+0,49+0,08)

Absorbed power, 150 Pa USP

154,2 W (69,1+69,1+16)

Absorbed current, 150 Pa USP

1,24 A (0,58+0,58+0,08)

Absorbed power, 200 Pa USP

174,2 W (79,1+79,1+16)

Absorbed current, 200 Pa USP

1,42 A (0,67+0,67+0,08)

POWER CONSUMPTION IN DEHUMIDIFICATION AND/OR INTEGRATION + VENTILATION WITH COMPRESSOR ON:

supply: 500 m³/h - exhaust: 250 m³/h - recirculation: 250 m³/h - water flow and water temperature at nominal conditions(1330 l/h at 15°C)

Absorbed power, 50 Pa USP

653,2 W (51,2+103+16+483)

Absorbed current, 50 Pa USP

4,46 A (0,41+0,87+0,08+3,1)

Absorbed power, 100 Pa USP

676 W (60+117+16+483)

Absorbed current, 100 Pa USP

4,66 A (0,49+0,99+0,08+3,1)

Absorbed power, 150 Pa USP

700,1 W (69,1+132+16+483)

Absorbed current, 150 Pa ESP

4,87 A (0,58+1,11+0,08+3,1)

Absorbed power, 200 Pa USP

725,1 W (79,1+147+16+483)

Absorbed current, 200 Pa ESP

5,08 A (0,67+1,23+0,08+3,1)

POWER CONSUMPTION INTEGRATION + WINTER MODE VENTILATION WITH COMPRESSOR OFF*: supply: 500 m³/h - exhaust: 250 m³/h - recirculation: 250 m³/h

Absorbed power, 50 Pa USP

170,2 W (51,2+103+16)

Absorbed current, 50 Pa USP

1,36 A (0,41+0,87+0,08)

Absorbed power, 100 Pa USP

193 W (60+117+16)

Absorbed current, 100 Pa USP

1,56 A (0,49+0,99+0,08)

Absorbed power, 150 Pa USP

217,1 W (69,1+132+16)

Absorbed current, 150 Pa USP

1,77 A (0,58+1,11+0,08)

Absorbed power, 200 Pa USP

242,1 W (79,1+147+16)

Absorbed current, 200 Pa USP

1,98 A (0,67+1,23+0,08)

COOLING AND DEHUMIDIFICATION CAPACITY: supply: 500 m³/h - exhaust: 250 m³/h - recirculation: 250 m³/h

water flow and water temperature at nominal conditions(1330 l/h at 15°C) - Fresh air: 30°C and 60%R.H. - Room: 26°C and 60%R.H.

Cooling power

4,46 kW (Coils + Heat exchanger)

Condensing capacity

66,9 l/24h (Coils + Heat exchanger)

Maximum power transferred to environment

1,1kW

COOLING AND DEHUMIDIFICATION CAPACITY: supply: 500 m³/h - recirculation: 500 m³/h - Total recirculation - water flow and water temperature at nominal conditions(1330 l/h at 15°C) - Room: 26°C and 60%R.H.

Cooling power

3,64 kW (Coils)

Condensation capacity

47,7 l/24h (Coils)

Maximum sensible power transferred to environment

1,4 kW

COOLING CAPACITY WITH ONLY WATER BATTERY: supply: 500 m³/h - exhaust: 250 m³/h - recirculation: 250 m³/h

water flow and water temperature at nominal conditions (1330 l/h at 15°C) - Fresh air: 30°C and 60%R.H. - Room: 26°C and 60%R.H.

Maximum sensible power (Coil + Heat exchanger)

1,36 kW

COOLING CAPACITY WITH ONLY WATER BATTERY: supply: 500 m³/h - recirculation: 500 m³/h - Total recirculation

water flow and water temperature at nominal conditions (1330 l/h at 15°C) - Room: 26°C and 60%R.H.

Maximum power (Coil)

1,45 kW

HEATING CAPACITY: supply: 500 m³/h - exhaust: 250 m³/h - recirculation: 250 m³/h - water flow and water temperature at nominal conditions (1330 l/h at 35°C) - Fresh air: -5°C and 80%R.H. - Room: 20°C and 50%R.H.

Thermal power

4,18 kW (Coil + Heat exchanger)

HEATING CAPACITY: supply: 500 m³/h - recirculation: 500 m³/h - Total recirculation - water flow and water temperature at nominal conditions (1330 l/h at 35°C) - Room: 20°C and 50%R.H.

Thermal power

2,11 kW (Coil)

DIMENSIONS

Unit dimensions

850 mm x 850 mm x 360 mm (excluding air spigots)

Fresh air and exhaust spigots

DN 160

Ambient recirculation spigot

DN 200

Ambient spigot (for expulsion)

DN 200

Supply spigot

DN 200

The product is compliant with the following directives and regulations:

Machinery Directive 2006/42/CE –17 May 2006

Low Voltage Directive 2014/30/EU –26 February 2014

Electromagnetic Compatibility Directive 2014/35/EU - 26 February 2014

RoHS Directive 2011/65/EU –8 June 2011

ErP Directive 2009/125/CE –21 October 2009

PED Directive 2014/68/EU –15 May 2014

Installation environment suitability: Internal environment, civil and industrial use.

AIR FLOWS Renewal mode

Nominal supply air flow rate

250

m3/h

Use ful static pressure supply*

520

Pa

Nominal air flow rate

250

m3/h

Useful static pressure exhaust*

550

Pa

AIR FLOWS Air treatment + renewal mode

Nominal supply air flow rate

500

m3/h

Nominal recirculation air flow rate

250

m3/h

Useful static pressure supply*

260

Pa

Nominal air exhaust flow rate

250

m3/h

Useful static pressure exhaust*

550

Pa

AIR FLOWS Air treatment mode only

Nominal recirculation air flow rate

500

m3/h

Useful static pressure supply*

270

Pa

COOLING AND DEHUMIDIFICATION (1)

Cooling capacity**

4,46

kW

Water temperature

15

°C

Water flow rate

1330

l/h

Pressure drop (including valve)

25

kPa

Condensation capacity

66,9

l/24h

HEATING (2)

Total power **

4,18

kW

Water flow rate

1330

l/h

Pressure drop (including valve)

25

kPa

POWER CONSUMPTION (250 m3/h and 200 Pa)

Supply voltage (single-phase HZ)

230

V

Absorbed power

0,174

kW

Current

1,42

A

POWER CONSUMPTION OF UNIT (500 m3/h and 200 Pa) (compressoron)

Supply voltage (single-phase HZ)

230

V

Absorbed power

0,725

kW

Current

5,08

A

(1) Plant water: T = 15°C

ROOM: T= 26°C and R.H. = 60%

FRESH AIR: T = 30°C and R.H. = 60%

Air flows: 250 m3/h recirculation + 250 m3/h fresh air

(2) Plant water: T = 35°C

ROOM: T = 20°C and R.H. = 50%

FRESH AIR: T = -5°C and R.H. = 80%

Air flows: 250 m3/h recirculation + 250 m3/h fresh air

* With G4 Filters

** Coils + Heat exchanger

Dimension

Bottom View

E = Ø155
H = 853
P = Ø195


Internal view

Side view

C = 364


Front view

K = 360


Plan view

F = 508
G = 882

Performance diagrams
WINTER EFFICIENCY OF THE HEAT EXCHANGER
SUMMER EFFICIENCY OF THE HEAT EXCHANGER
POWER CONSUMPTION
USEFUL STATIC PRESSURE IN VENTILATION MODE
USEFUL STATIC PRESSURE DEHUMIDIFICATION/INTEGRATION
