SBVMCE600

PLUS:

AFONIZED SUPPORT AND AIR DIFFUSION STRUCTURE STRUCTURE CERTIFIED TO SUPPORT THE HEAT RECOVERY UNIT’S OWN WEIGHT STRUCTURE CERTIFIED FOR ANTI-SEISMIC INSTALLATION

CHARCTERISTICS:

Self-supporting retractable aluminum profile structure and external coat of wood finish (on request HPL) with triple function: VMCE600 floor support with anti-seismic feet. Soundproofing of heat recovery unit operation. Air diffusion optimization with concealed slot diffuser with Coanda effect on supply air.

Dimension

C = 413
D = 250
E = Ø250
F = 350

1 = Supply air

A = 2580
B = 1820

1 = Return air
2 = Exhaust air
3 = Fresh air

View of the supporting structure

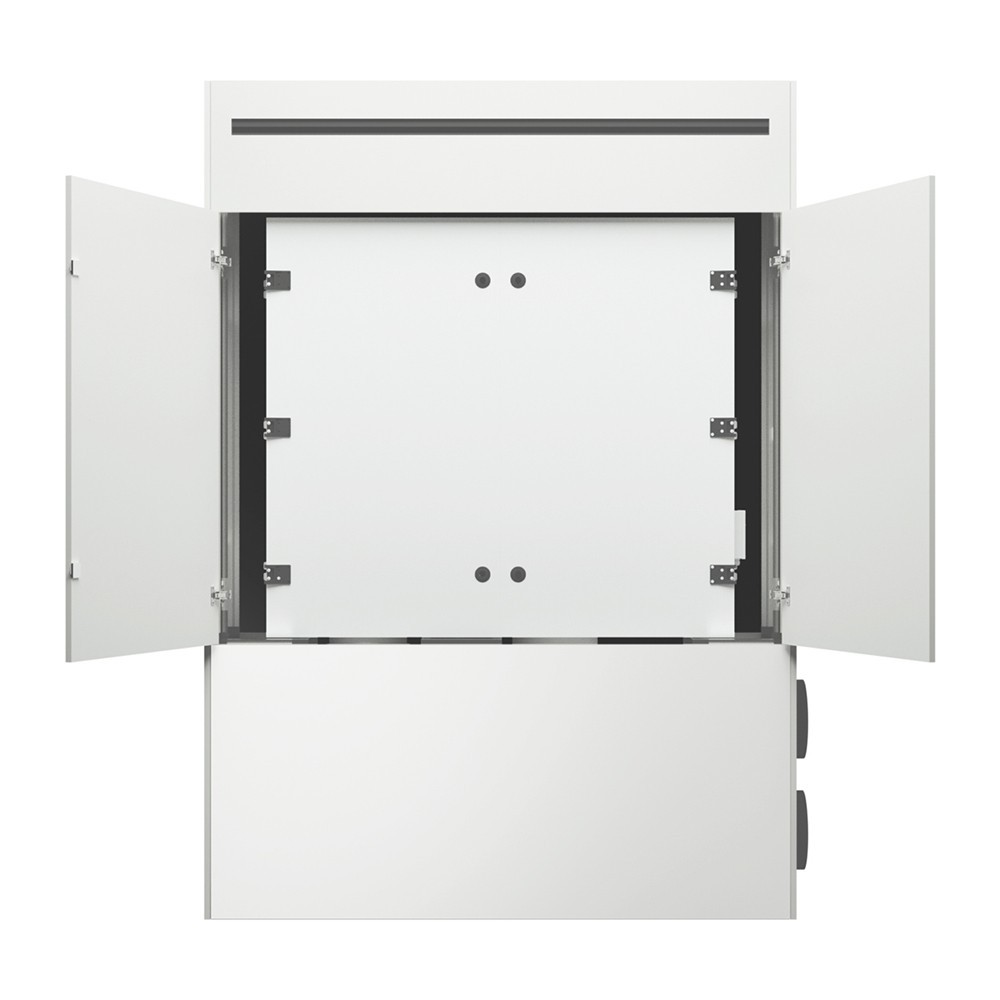

View of the inspectionability of the cabinet

Download documents

SC_SBVMCE600
