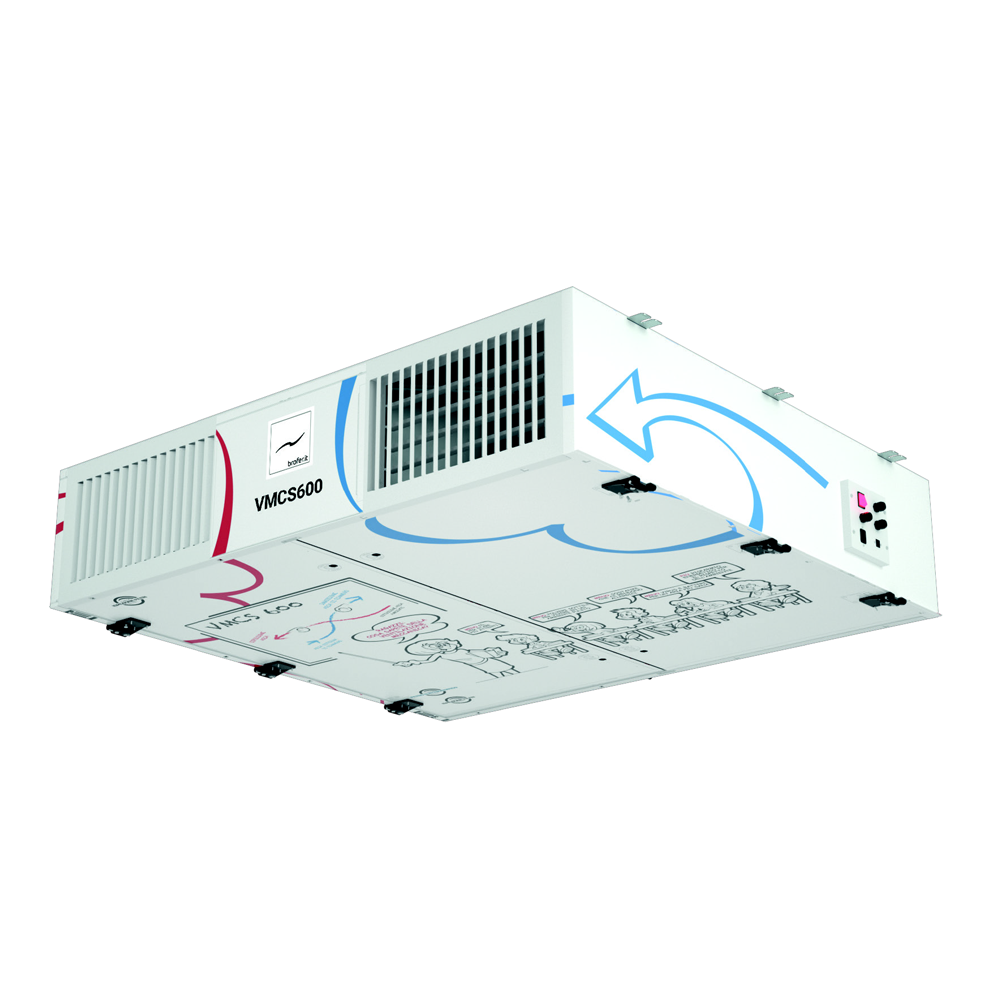

VMCS600

PLUS:
HEAT RECOVERY:
high efficiency plastic counter-current exchanger. Complete with automatic bypass and condensate collection basin.
STRUCTURE:
self-supporting soundproof sandwich structure. Equipped with removable panels for ordinary and extraordinary maintenance operations. Complete with brackets for ceiling fixing.
FANS:
double inlet centrifugal fans with directly coupled brushless EC electric motor.
FILTERS:
G4 efficiency on return air. M5 efficiency on fresh air.
ADDITIONAL:
OPTIONAL: – CO2 control (CO2RF) – F7 efficiency filter (VMCS600 F7) – modbus communication device (MODBUSRF)
erp2018
e-energy-saving
filtro-elettronico
wifi
app
i-orizzontale-e-verticale
plug-play
Technical data



VMCS600 - VMCS600FE

Portata aria rinnovo

Replacement airflow

Frischluftdurchsatz

600 mc/h

Portata aria estrazione

Extraction airflow

Abluft-Durchsatz

600 mc/h

Efficienza recupero termico*

Thermal recovery efficiency*

Wirkungsgrad Wärmerückgewinnung*

90 %

Potenza nominale singolo ventilatore (w)

Installed power single fan (w)

Nennleistung einzelner Lüfter (w)

156

Pressione sonora dB(A)

Sound pressure dB(A)

Schalldruckpegel dB(A)

38

Filtrazione aria rinnovo

Replacement air filtration

Frischluftfilterung

M5

ISO COARSE ≥ 70 %

Filtrazione aria estrazione

Extraction air filtration

Abluftfilterung

G4

ISO COARSE ≥ 65 %

Filtrazione aria rinnovo (opzionale)

Replacement air filtration (optional)

Frischluftfilterung (optional)

F7

ISO e PM1 ≥ 65 %

Filtrazione elettronica

Electronic filtration

Elektronische Filterung

Opzionale | Optional

Controllo CO2

CO2 control

Kontrolle CO2

Opzionale | Optional



*(UNI EN 308) aria rinnovo: 5°C 72% UR / aria espulsione: 25°C 28% UR

*(UNI EN 308) fresh air: 5 ° C 72% RH / expulsion air: 25 ° C 28% RH

* (UNI EN 308) Frischluft: 5°C 72% UR / Absaugluft: 25°C 28% UR

Dimension

Bottom View

B = 1300
H = 1450


Side view right DX

1 =
Power supply input
Controller input
Power button


Front view

1 = Inspection doors


Side view left

C = 325


Rear view

E = Ø250
L = 591
M = 307

1 = Condensate drain - Vitreous pipe Ø20


Vista dall’alto

F = 1478
G = 910
Performance diagrams

STANDARD HEAT EXCHANGER EN 308 CERTIFIED

Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

STANDARD HEAT EXCHANGER EN 308 CERTIFIED

Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

ENTHALPIC HEAT EXCHANGER (temperature efficiency)

Fresh air: + 5 °C / 70 % R.H.
Return air: 25°C / 50 % R.H.

ENTHALPIC HEAT EXCHANGER (humidity efficiency)

Fresh air: + 5 °C / 70 % R.H.
Return air: 25°C / 50 % R.H.

Specification text

Ansicht von unten

B = 1300
H = 1450
