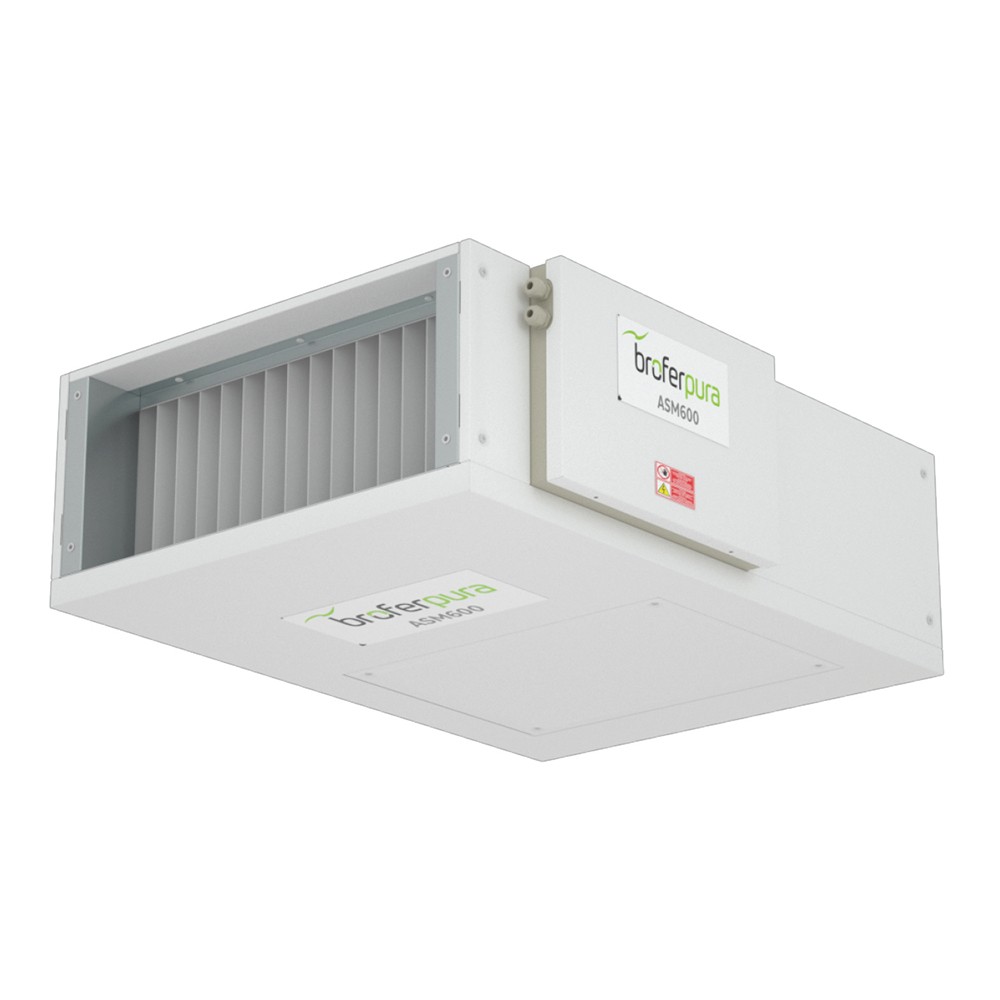

Broferpura

Technical data


	ASM600	ASM1200	ASM2100	ASM3500	ASM5100
Maximum air flow rate (mc/h)	600	1200	2100	3500	5100
Area treated (height 3 meter) (m2)	50-70	120-140	180-240	290-390	430-560
Efficiency UNI 11254	ePM2,5 90/95%
Bacterial filtration efficiency	> 90%
Electric power installed (w)	110	310	430	850	1100

Dimension

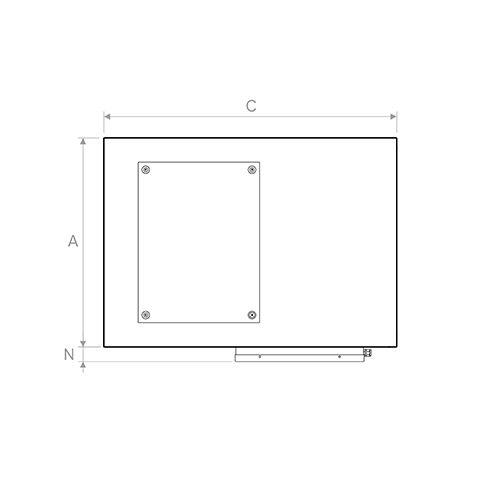

ASM 600/1200

Bottom View

ASM600+PSRAS+PRC
A = 590
C = 850
N = 42

ASM1200+PSRAS+PRC
A = 590
C = 850
N = 42

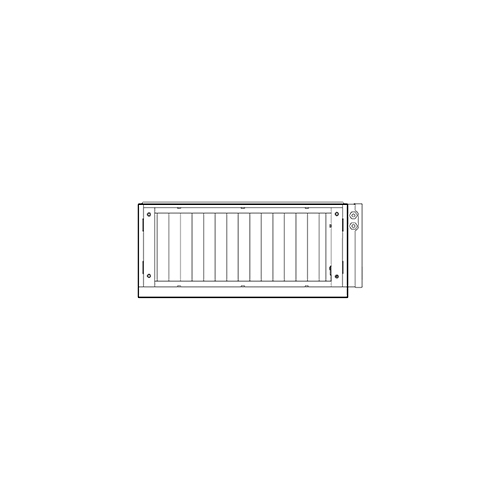

ASM 600/1200

Rear View

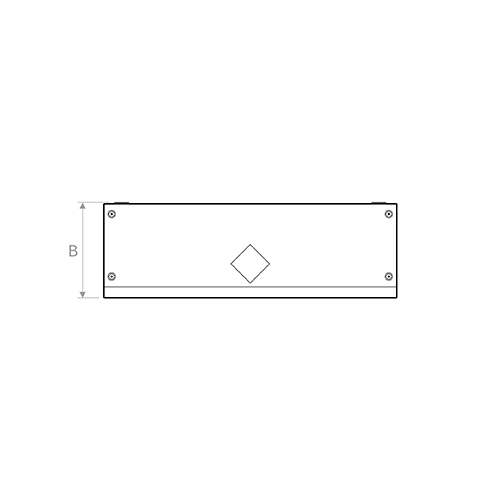

ASM 600/1200

Side view

ASM600+PSRAS+PRC
B = 270

ASM1200+PSRAS+PRC
B = 400

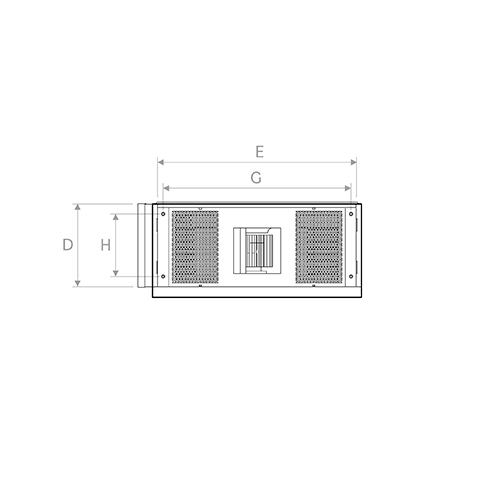

ASM 600/1200

Front view

ASM600+PSRAS+PRC
D = 234
E = 562
G = 532
H = 169

ASM1200+PSRAS+PRC
D = 364
E = 562
G = 532
H = 299

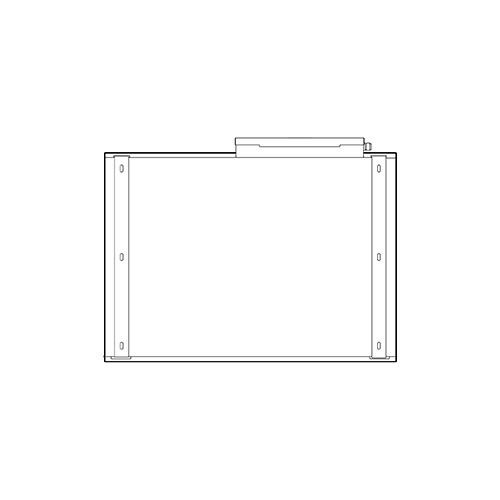

ASM 600/1200

Top view

ASM 600/1200

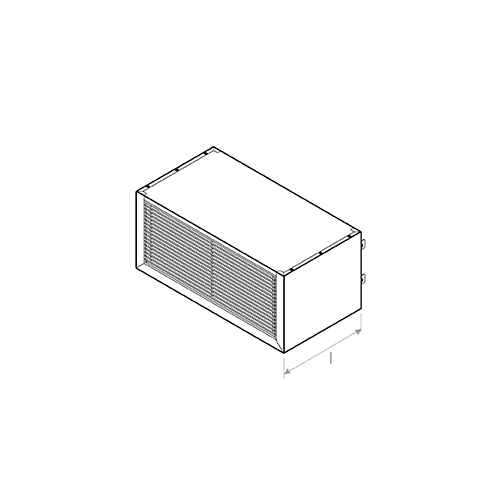

PSRAS 600 / 1200
ASM600+PSRAS+PRC
ASM1200+PSRAS+PRC
I = 310

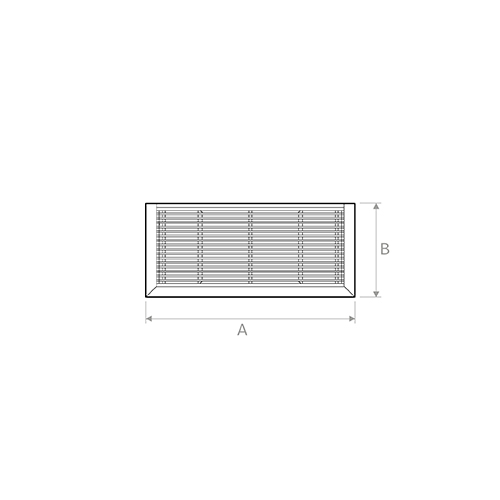

ASM 600/1200

PSRAS 600 / 1200

ASM600+PSRAS+PRC
A = 590
B = 270

ASM1200+PSRAS+PRC
A = 590
B = 400

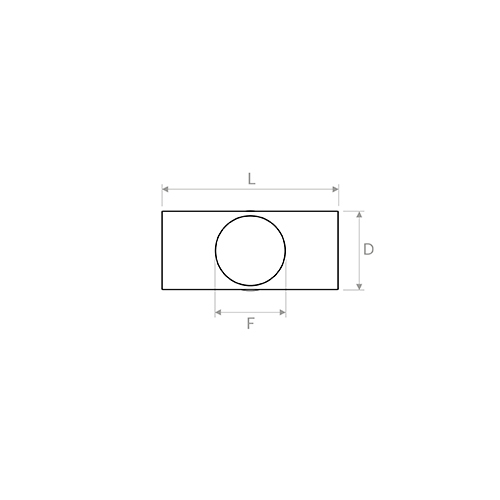

ASM 600/1200

PRC 600 / 1200

ASM600+PSRAS+PRC
D = 234
F = 198
L = 498

ASM1200+PSRAS+PRC
D = 364
F = 248
L = 498

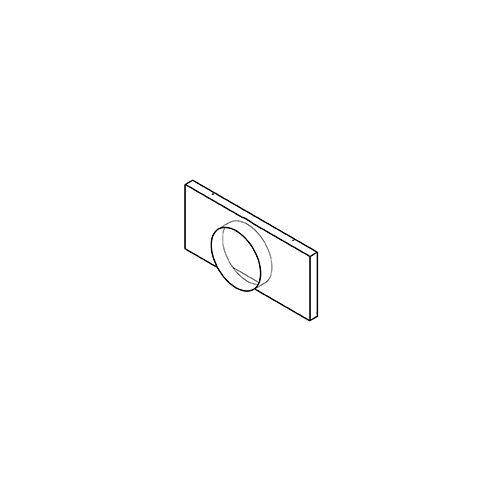

ASM 600/1200

PRC 600 / 1200

M = 42

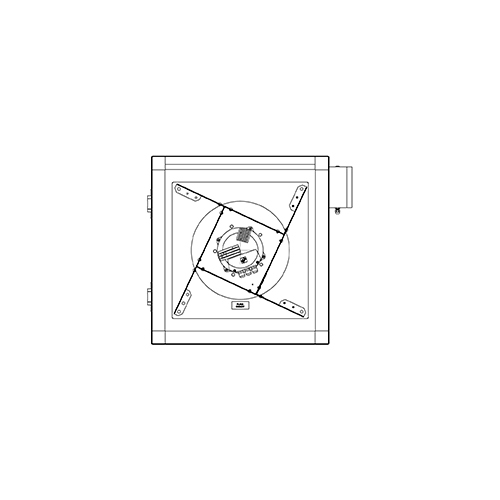

ASM 2100 / 3500 / 5100

Rear view

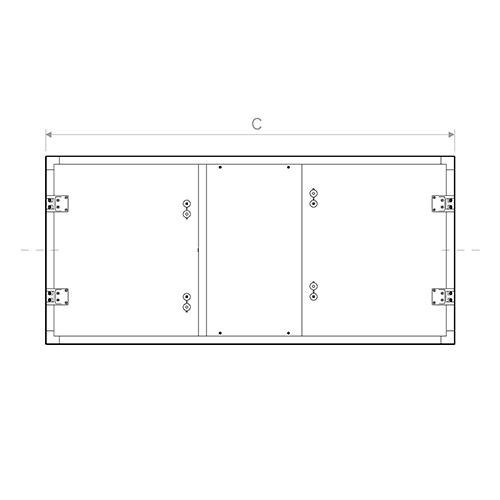

ASM 2100 / 3500 / 5100

Side view

ASM2100+PRC
C = 1500

ASM3500+PRC
C = 1500

ASM5100+PRC
C = 1700

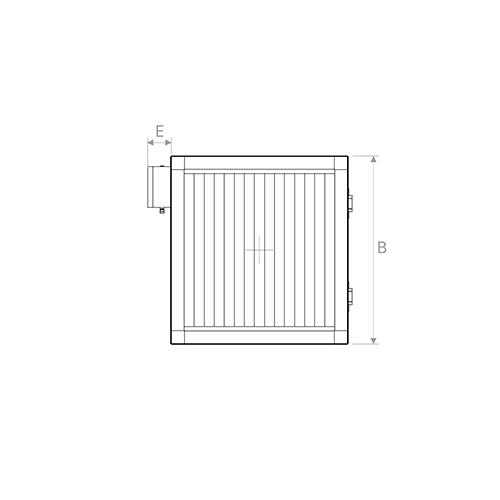

ASM 2100 / 3500 / 5100

Top view

ASM2100+PRC
B = 590
E = 30

ASM3500+PRC
B = 690
E = 30

ASM5100+PRC
B = 690
E = 30

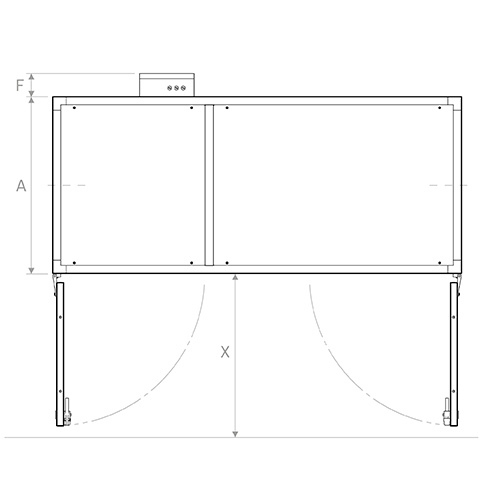

ASM 2100 / 3500 / 5100

Top view

ASM2100+PRC
A = 560
F = 85
X = 600

ASM3500+PRC
A = 650
F = 85
X = 600

ASM5100+PRC
A = 940
F = 85
X = 600

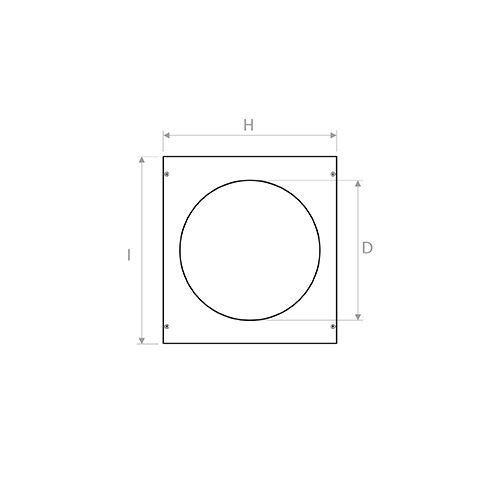

ASM 2100 / 3500 / 5100

PRC 2100 / 3500 / 5100

ASM2100+PRC
D = 400
H = 510
I = 530

ASM3500+PRC
D = 500
H = 600
I = 630

ASM5100+PRC
D = 600
H = 890
I = 630
